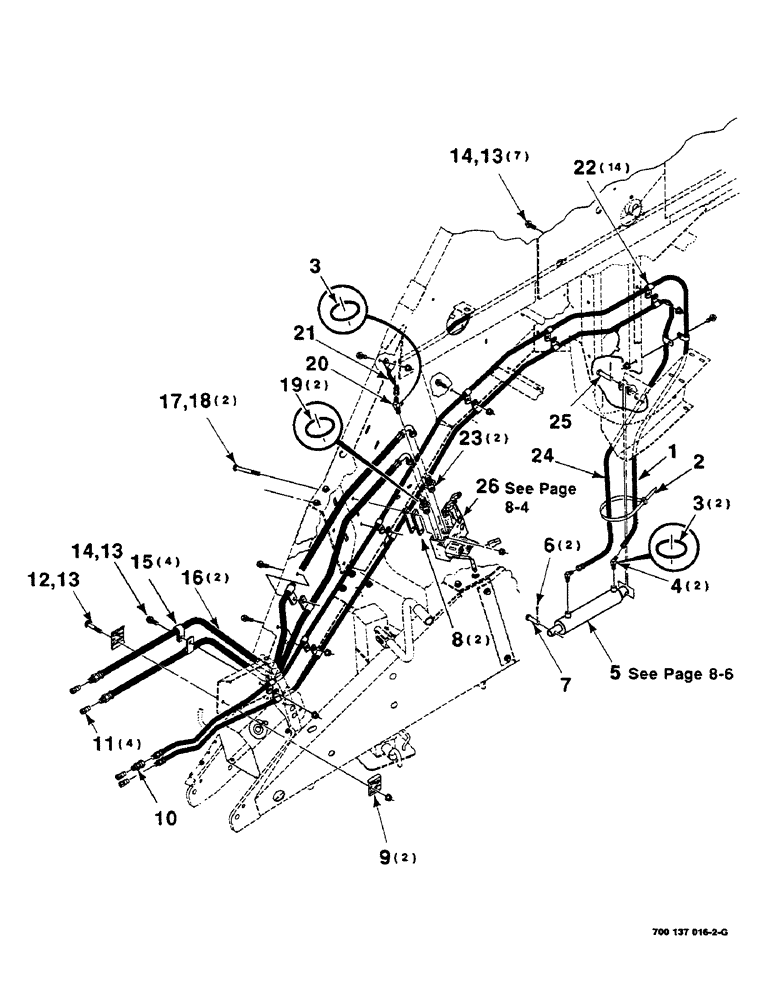

Запчасти Case IH 8585 (8-02) - HYDRAULIC ASSEMBLY, FRONT (07) - HYDRAULICS

1

700716857

HOSE

- hydraulic

1шт.

2

529070

CABLE TIE,368.3mm L

TIE - nylon

1шт.

3

738468

O-RING

3шт.

4

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 3) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

5

700712122

CYLINDER

- hydraulic

1шт.

6

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

7

439-11032

HEADED PIN,15.88mm OD x 50.8mm L

5/8 X 2 CLEVIS PIN

1шт.

8

700134434

PLATE ASSY.

PLATE- spacer

2шт.

9

700129085

CLAMP

2шт.

10

7846389

RESTRICTOR

1шт.

11

1-7141

FITTING

COUPLING

4шт.

12

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8-16 X 2-1/4 RHSNB

1шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

9шт.

14

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line 1", Insul, 3/8" Bolt

4шт.

16

700716856

HOSE

- hydraulic

2шт.

17

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 RHSNB

2шт.

18

329-286

FLANGE NUT,Flg, 3/8"-16, G8

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

20

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

CONNECTOR 45° (Includes item 3)

1шт.

21

700716854

HOSE

- hydraulic

1шт.

22

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

14шт.

23

51200289

FITTING

- hyd (Includes item 19)

2шт.

24

700716858

HOSE

- hydraulic

1шт.

25

63495

CLIP

5/8 X 2-1/2 CLEVIS PIN

1шт.

26

700720038

VALVE

BALE DENSITY CONTROL VALVE

1шт.
