(4-16) - ELECTRICAL SERVICE PARTS, (CONT)

Запчасти Case IH 8585 (4-16) - ELECTRICAL SERVICE PARTS, (CONT) (06) - ELECTRICAL

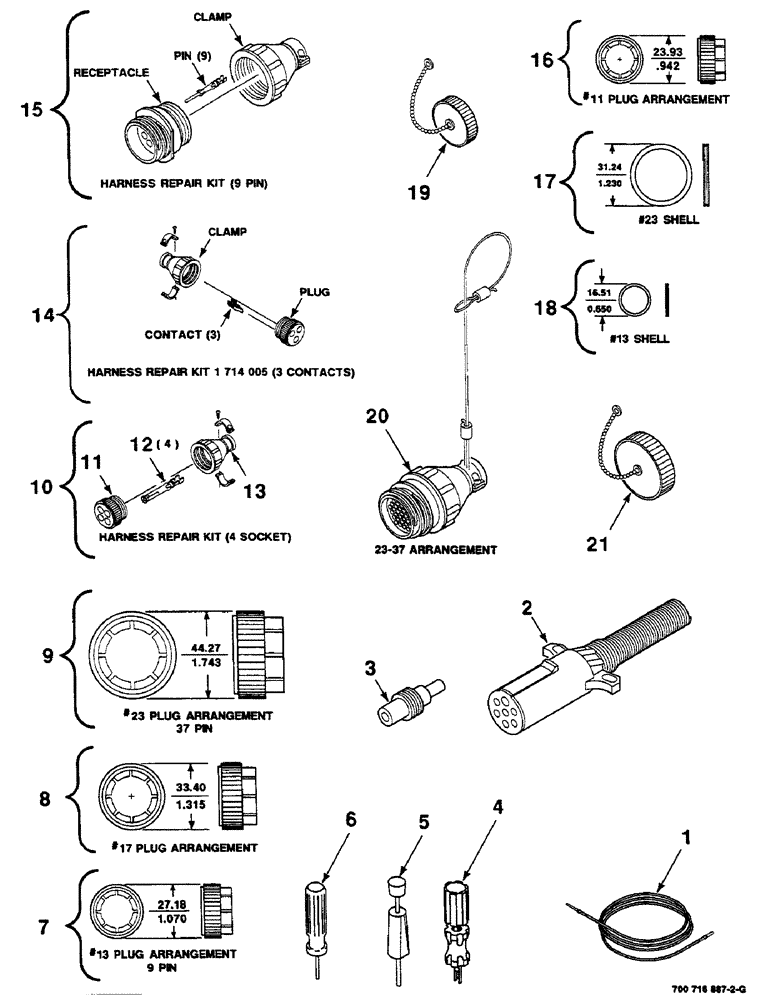

Схема запчастей Case IH 8585 - (4-16) - ELECTRICAL SERVICE PARTS, (CONT) (06) - ELECTRICAL
19
18
8
7
12
14
21
6
10
5
11
4
2
15
1
3
13
9
16
20
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700708333

WIRE

- test

1шт.

2

121646C1

TERMINAL CONNECTOR,Female

PLUG - 7 pin domestic

1шт.

3

700714829

PLUG

- cavity

1шт.

4

700707014

TERMINAL CONNECTOR

TOOL - connector repair

1шт.

5

131503C1

TOOL

- connector repair (amp)

1шт.

6

700707012

TERMINAL CONNECTOR

TOOL - connector repair

1шт.

7

60-6127T2

CONNECTION

RING - coupling

1шт.

8

1301191C1

CONNECTION

RING - coupling

1шт.

9

60-6129T2

CONNECTION

RING - coupling

1шт.

10

700712132

REPAIR KIT

KIT - harness repair (Includes items 11, 12 and 13)

1шт.

11

700712132

REPAIR KIT

PLUG

1шт.

12

700708758

TERMINAL

SOCKET

1шт.

13

700709233

CLAMP

1шт.

14

1714005

PACKAGE,SERVICE

KIT - harness repair

1шт.

Ref #14 the complete connector is P/N 225165c1

1шт.

15

1713973

ELECTRICAL WIRE

KIT - harness repair

1шт.

16

60-6126T2

CONNECTION

RING - coupling

1шт.

17

700711660

SEAL

1шт.

18

700712896

SEAL

1шт.

19

700707016

CAP

- sealing

1шт.

20

700713300

ELEC CONNECTOR

PLUG ASSEMBLY - service, standard sex, free hanging, w/peripheral seal

1шт.

21

700712983

CAP

- sealing

1шт.
