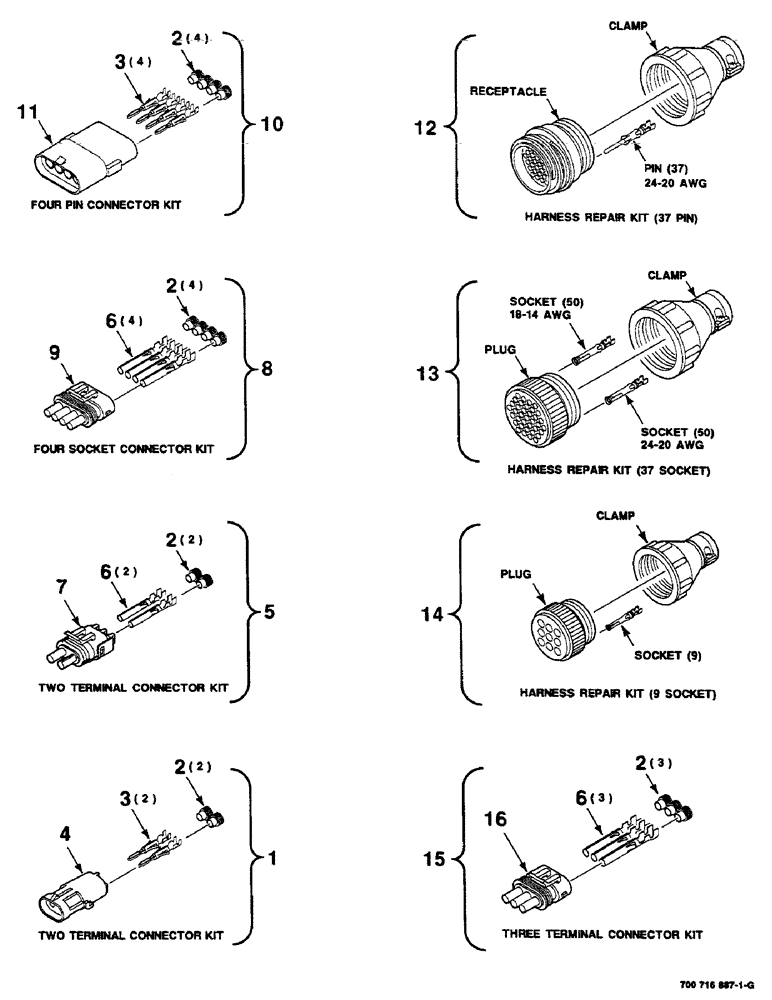

Запчасти Case IH 8585 (4-14) - ELECTRICAL SERVICE PARTS (06) - ELECTRICAL

1

700708753

REPAIR KIT

KIT - harness repair (Includes items 2, 3 and 4)

1шт.

2

700706400

PLUG

SEAL

1шт.

3

700706401

TERMINAL

PIN - terminal (18-20 gauge wire)

1шт.

4

700706399

ELEC CONNECTOR,14 - 20 SAE

CONNECTOR - shroud (Two way)

1шт.

5

700706999

REPAIR KIT

KIT - harness repair (Includes items 2, 6 and 7)

1шт.

6

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

- socket (18-20 gauge wire)

1шт.

7

700708761

ELEC CONNECTOR,Female

TWO WAY-CONNECTOR, Female

1шт.

8

700707002

REPAIR KIT

FOUR WAY-CONNECTOR REPAIR KIT, female (Includes items 2, 6 and 9)

1шт.

9

700708963

WIRE CONNECTOR

FOUR WAY-CONNECTOR, female

1шт.

10

700709354

REPAIR KIT

FOUR WAY-SHROUD CONNECTOR REPAIR KIT (Includes items 2, 3 and 11)

1шт.

11

700708964

WIRE CONNECTOR

FOUR WAY-CONNECTOR, male

1шт.

12

700707003

REPAIR KIT

KIT - harness repair

1шт.

13

700707004

REPAIR KIT

KIT - harness repair

1шт.

14

1713981

KIT

- harness repair

1шт.

15

700707001

REPAIR KIT

KIT - harness repair (Includes items 2, 6 and 16)

1шт.

16

245484C1

ELEC CONNECTOR,3 Pin

THREE WAY-CONNECTOR, female

1шт.
