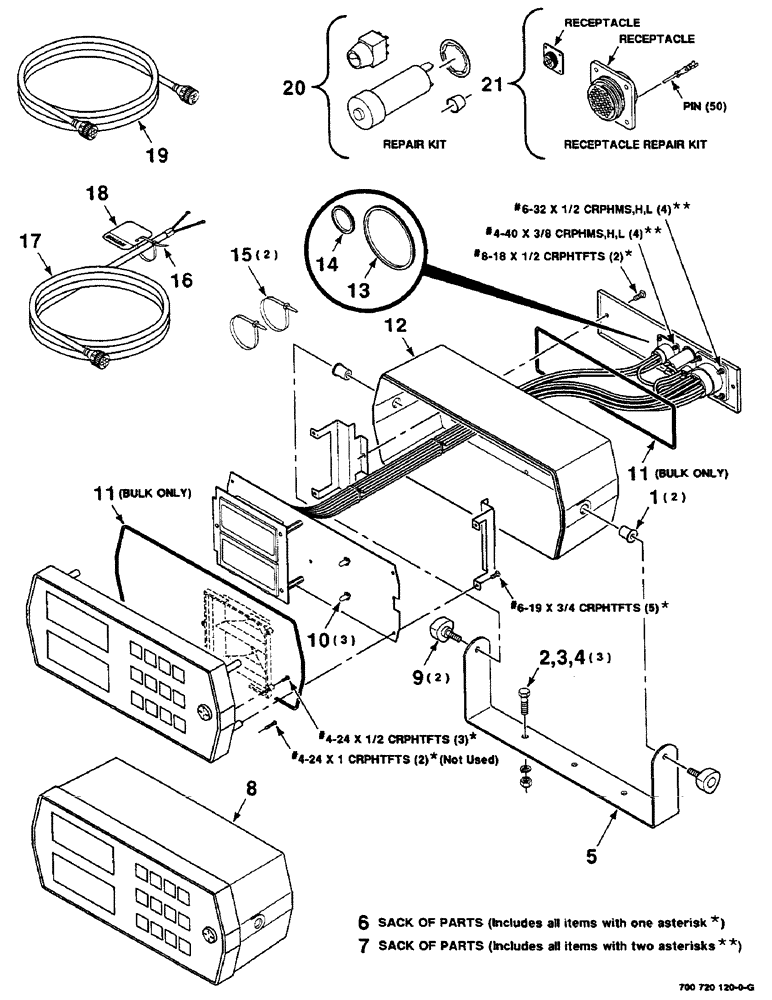

Запчасти Case IH 8585 (4-12) - CONSOLE CONTROL BOX ASSEMBLY (06) - ELECTRICAL

1

700707294

PUSH-ON NUT

RUBBER WELL NUT

2шт.

2

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

3шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

4

425-104

NUT,1/4"-20, Cl 5

3шт.

5

700114077

SUPPORT

- control box

1шт.

6

700707378

KIT

SACK OF PARTS

1шт.

7

700707377

KIT

SACK OF PARTS

1шт.

8

700720120

CONSOLE

CONTROL BOX COMPLETE (Includes items: 6, 7, 10, 11, 12, 13, 14, 20 and 21)

1шт.

9

700707295

KNOB

2шт.

10

700707457

BULB

LAMP AND HOLDER

3шт.

11

700707383

GASKET

- sponge cord (Bulk - 10 foot)

1шт.

12

700707296

PANEL

COVER

1шт.

13

700711660

SEAL

1шт.

14

700712102

SEAL

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

16

869707C1

STRAP,368.3mm L

TIE - nylon

1шт.

17

700707598

WIRE HARNESS

CABLE ASSEMBLY (Used from, Serial Range: controller-battery)

1шт.

18

700707683

DECAL

- notice

1шт.

19

700712135

WIRE HARNESS

CABLE ASSEMBLY (Used from controller to auxiliary power source)

1шт.

20

700707382

REPAIR KIT

KIT - repair

1шт.

21

700712134

REPAIR KIT

KIT - receptacle repair

1шт.
