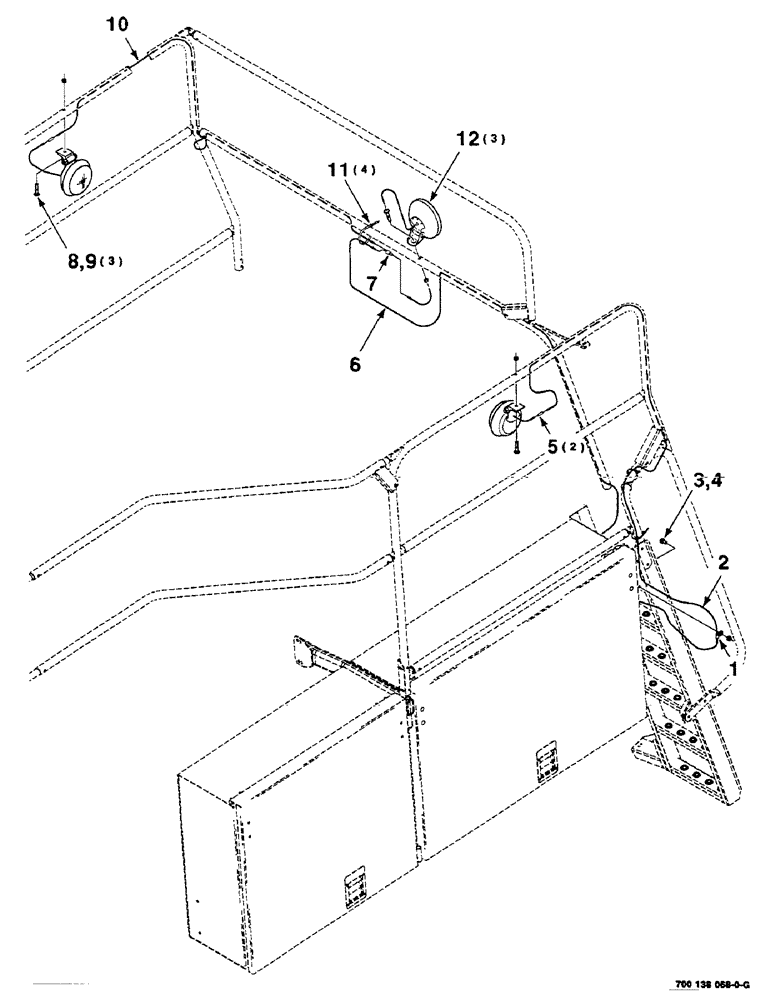

Запчасти Case IH 8585 (4-08) - WORKING LIGHT ASSEMBLY (06) - ELECTRICAL

1

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.

2

700720117

ELECTRICAL WIRE

WIRE - electrical

1шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

4

329-286

FLANGE NUT,Flg, 3/8"-16, G8

1шт.

5

41145

ROD, CONNECTING

WIRE - connector

2шт.

6

700720118

ELECTRICAL WIRE

WIRE - electrical

1шт.

7

41681

ROD, CONNECTING

WIRE - connector

1шт.

8

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

3шт.

9

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

3шт.

10

700720119

ELECTRICAL WIRE

WIRE - electrical

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

12

41624

PIPE FITTING

LIGHT

3шт.
