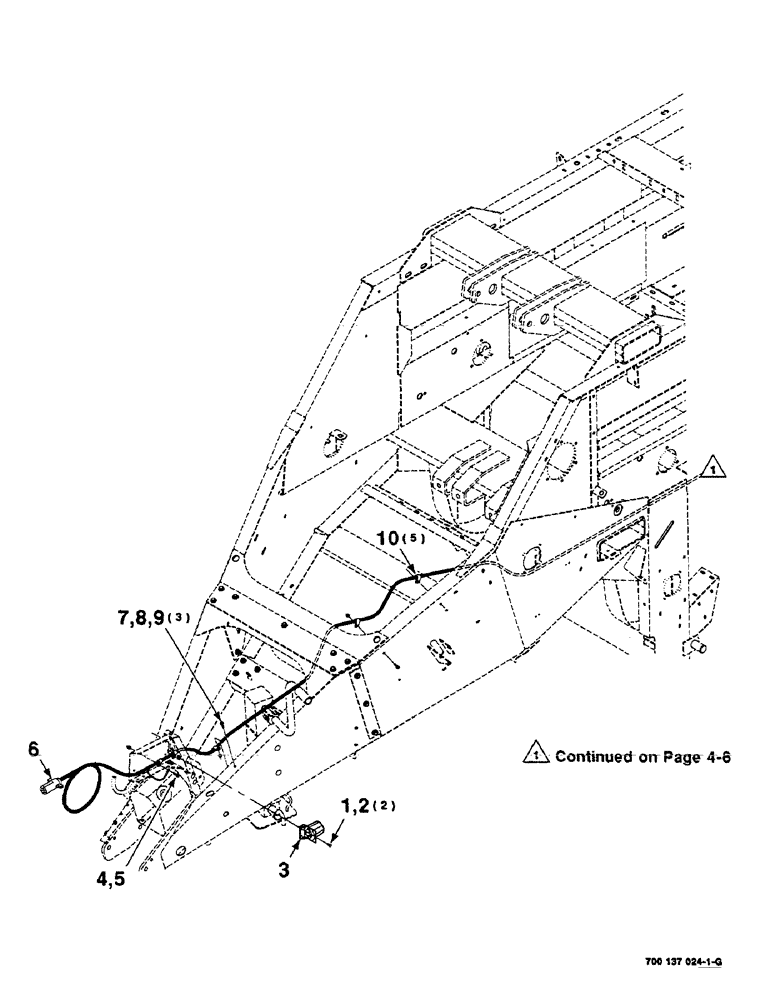

Запчасти Case IH 8585 (4-04) - ROAD LIGHT ASSEMBLY, FRONT (06) - ELECTRICAL

1

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

2шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

3

183727C1

CAP

- plug, electric

1шт.

4

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

1шт.

5

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

6

700716881

HARNESS

- lights

1шт.

7

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

10

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

5шт.
