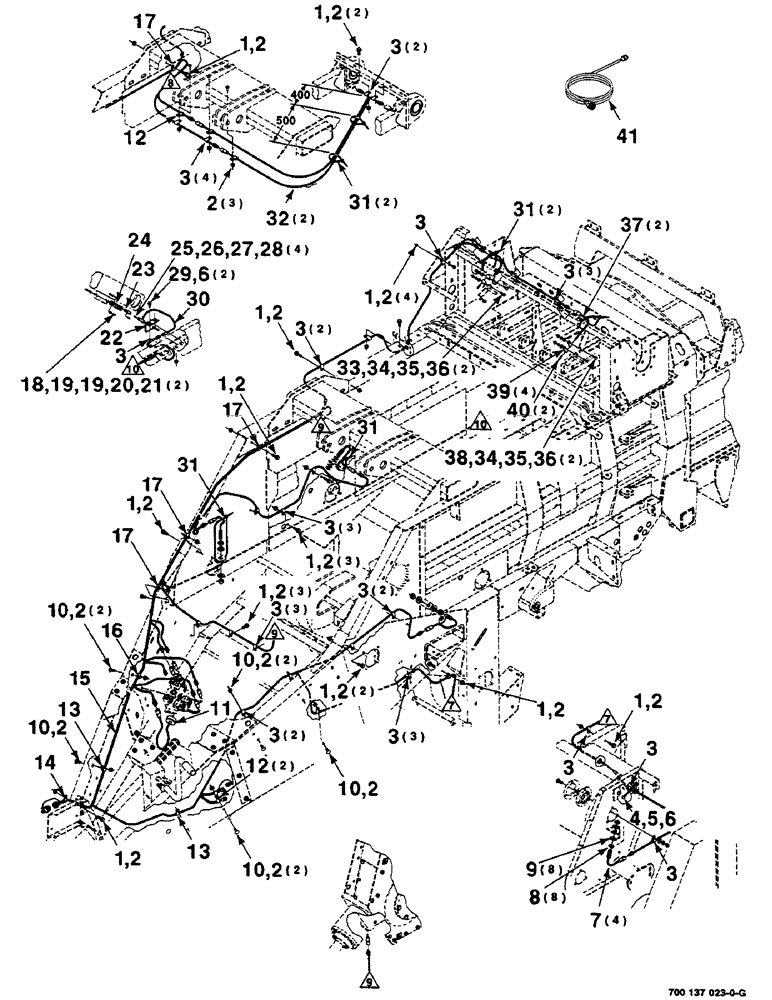

Запчасти Case IH 8585 (4-02) - ELECTRICAL WIRING AND SENSOR ASSEMBLY (06) - ELECTRICAL

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

21шт.

2

329-286

FLANGE NUT,Flg, 3/8"-16, G8

32шт.

3

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

26шт.

4

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

1шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

7

700706398

SENSOR

PTO SENSOR

4шт.

8

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 HJN GR2

8шт.

9

705566

WASHER

3/4 HARDENED PLAIN WASHER

8шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSSNB

8шт.

11

700113064

PRESSURE SWITCH

PRESSURE TRANSDUCER ASM

1шт.

12

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

3шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

14

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

1-1/4 CLAMP

1шт.

15

700716887

HARNESS

- wire, main

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

18

340-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

#8-32 X 3/4 CRPHMS GR60M

2шт.

19

495-21019

WASHER,#8

4шт.

20

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

21

225-14108

NUT,#8-32

H GR2 #8-32

2шт.

22

700138067

ANGLE

- switch

1шт.

23

700709996

SWITCH

ACTUATOR - switch

1шт.

24

700122574

SUPPORT

- actuator

1шт.

25

700710188

SCREW

#6-32 X 3/4 CRPHMS GR60M

4шт.

26

495-31016

WASHER,#6

4шт.

27

492-11006

LOCK WASHER,#6

Washer, Lock, #6

4шт.

28

225-14106

NUT,#6-32

4шт.

29

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

30

700710208

ROTARY SWITCH

SWITCH

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

32

700716724

HARNESS

CABLE ASSEMBLY

2шт.

33

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

34

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

35

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

36

425-104

NUT,1/4"-20, Cl 5

4шт.

37

700113863

SENSOR

SWITCH ASSEMBLY

2шт.

38

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

2шт.

39

751321

CLAMP

1/4 CLAMP

4шт.

40

700706340

MAGNET

2шт.

41

700706459

WIRE HARNESS

HARNESS - cable

1шт.
