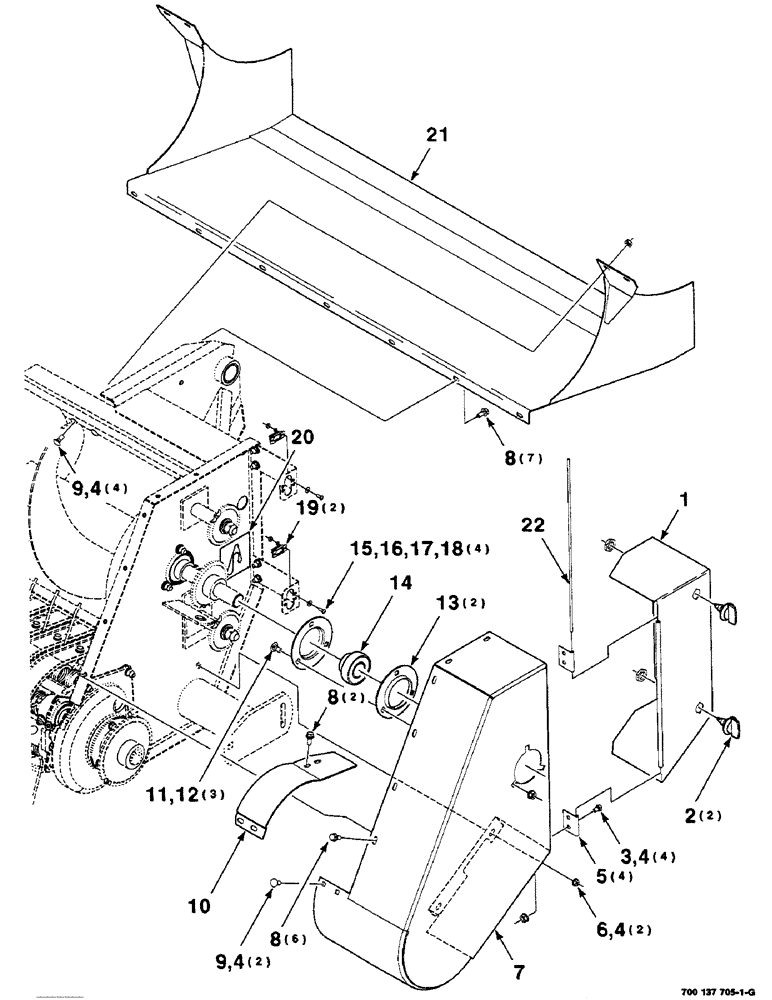

Запчасти Case IH 8585 (3-20) - PICKUP SHIELDS ASSEMBLY, LEFT Pickup

1

700133120

SHIELD

- left

1шт.

2

700714706

LATCH

- 90° turn (Includes nut)

2шт.

3

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 X 1/2 C

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

12шт.

5

700108658

SUPPORT

- hinge

4шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

7

700137769

PANEL

WA - left

1шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

15шт.

9

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

10

700137766

COVER

WRAPPER - left

1шт.

11

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

12

329-286

FLANGE NUT,Flg, 3/8"-16, G8

3шт.

13

617863R1

FLANGED BEARING

- bearing

2шт.

14

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- spherical

1шт.

15

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR60M

4шт.

16

195-513

WASHER,#10

PLAIN WASHER #10

4шт.

17

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

18

225-14110

NUT,#10-24

4шт.

19

700714529

SOCKET/RECEPTACLE

RECEPTACLE

2шт.

20

700711094

DECAL

- drive, left

1шт.

21

700137772

CHUTE (DOWNWARD)

CHUTE WA

1шт.

22

6474316

PIN

- hinge

1шт.
