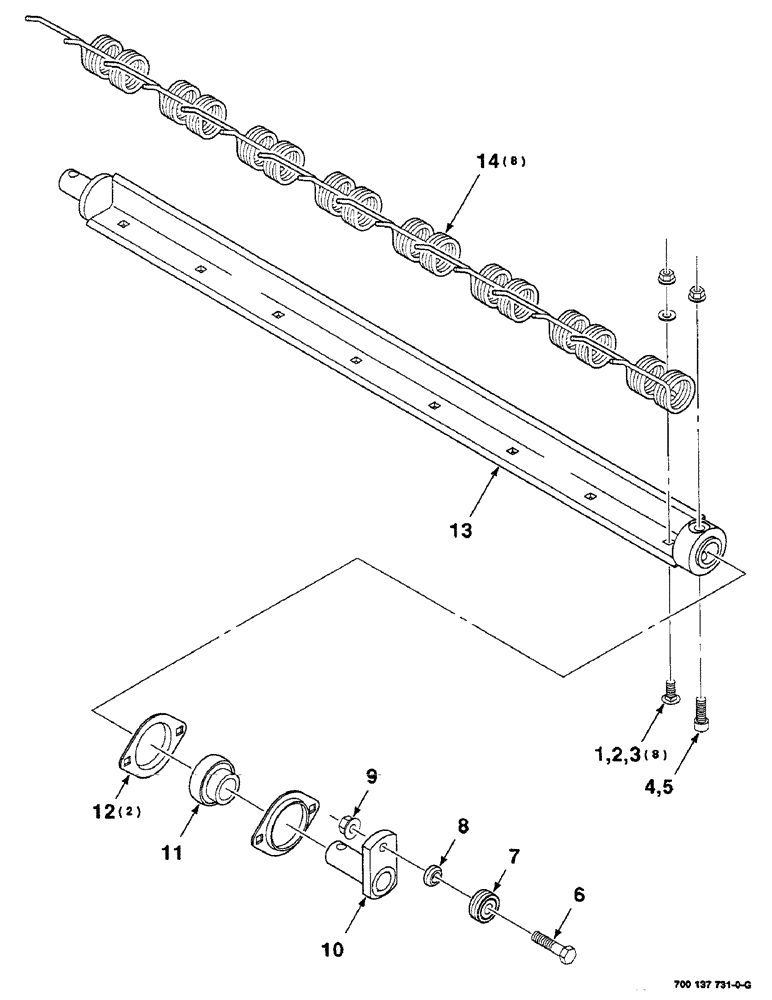

Запчасти Case IH 8585 (3-18) - ANGLE ASSEMBLY, RIGHT Pickup

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

4

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

7/16-14 X 2-1/4 HSHCS SPL

1шт.

5

704452

SPRING

7/16-14 HFTLN GR/G

1шт.

6

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-20 X 2 C GR8

1шт.

7

700720050

CAM FOLLOWER

BEARING - cam follower

1шт.

8

700137750

SPACER

1шт.

9

700707867

NUT

1/2-20 HFTLN GR/G

1шт.

10

700137747

CRANK

WA

1шт.

11

700708095

SPHERICAL BEARING

BEARING - spherical

1шт.

12

581469R1

FLANGE,Bearing

- bearing

2шт.

13

700137733

ANGLE

WA - right

1шт.

14

700716132

TINE

- double

8шт.
