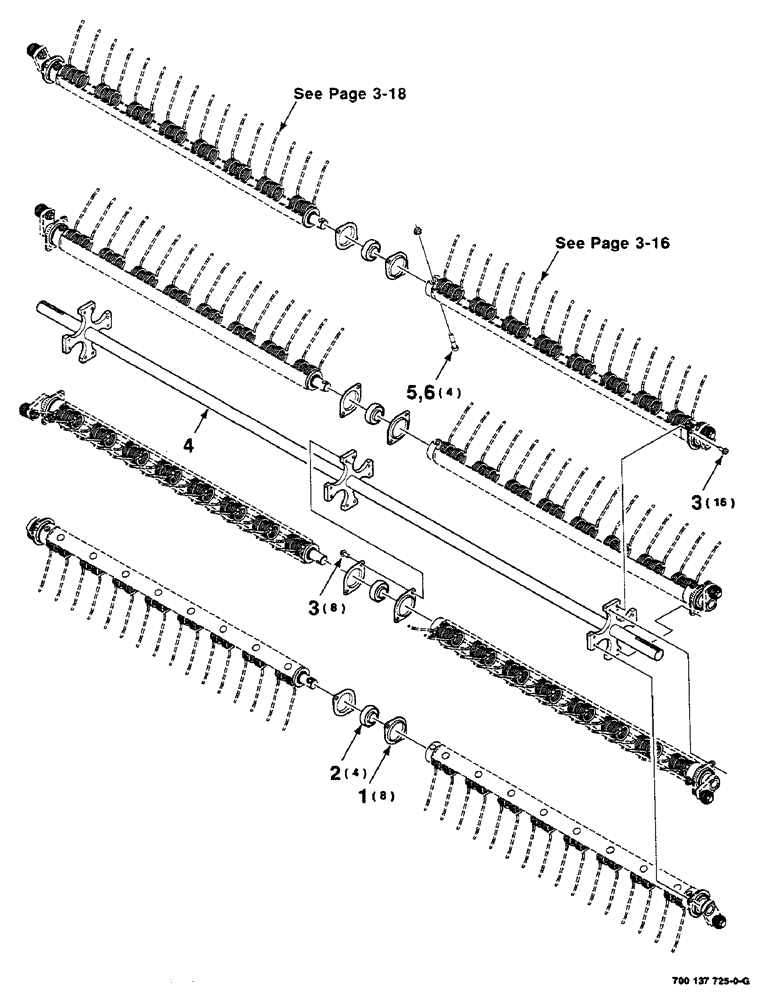

Запчасти Case IH 8585 (3-14) - ROTOR ASSEMBLY Pickup

1

581469R1

FLANGE,Bearing

- bearing

8шт.

2

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- spherical

4шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

24шт.

4

700137726

ROTOR

WA

1шт.

5

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

7/16-14 X 2-1/4 HSHCS SPL

4шт.

6

704452

SPRING

7/16-14 HFTLN GR/G

4шт.
