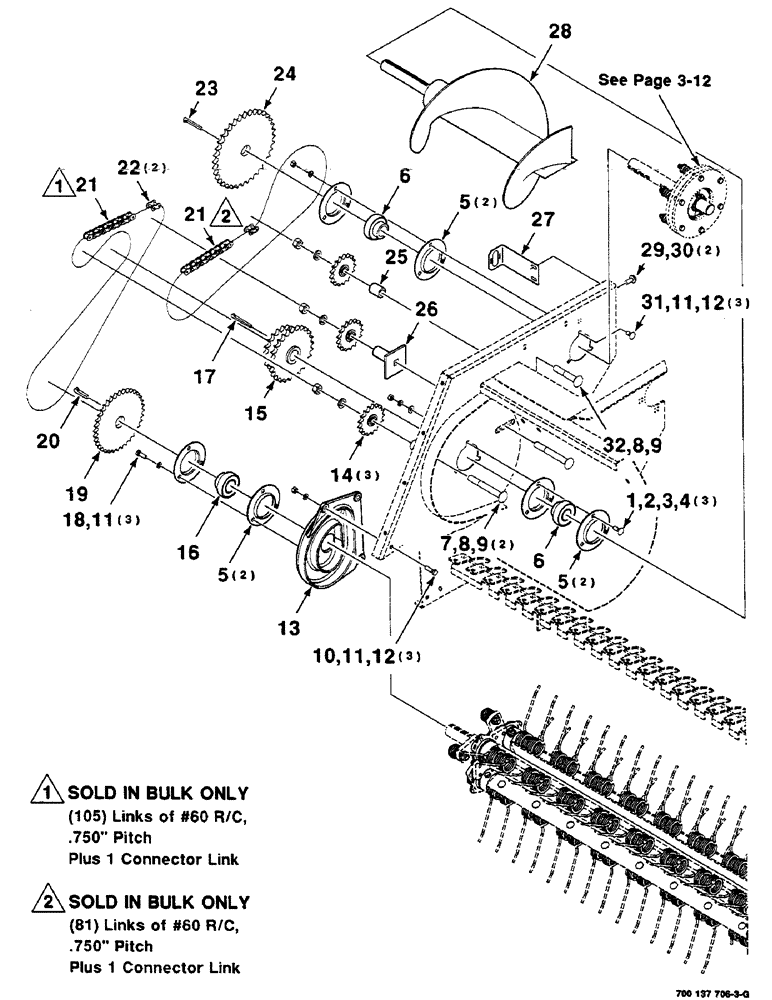

Запчасти Case IH 8585 (3-10) - PICKUP ASSEMBLY, RIGHT Pickup

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

3

425-106

NUT,3/8"-16, Cl 5

3шт.

4

492-11038

LOCK WASHER,3/8"

3шт.

5

617863R1

FLANGED BEARING

- bearing

6шт.

6

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- spherical

2шт.

7

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

5/8-11 X 5 RHSNB

2шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

9

425-1010

NUT,5/8"-11, G5

3шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

11

492-11038

LOCK WASHER,3/8"

9шт.

12

425-106

NUT,3/8"-16, Cl 5

6шт.

13

700116125

HOUSING

TRACK - cam

1шт.

14

541857R92

SPROCKET,15T

- idler

3шт.

15

700123775

SPROCKET ASSY.

SPROCKET WA - 20 & 26 T

1шт.

16

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

1шт.

17

61978

KEY

1/4 X 2-1/2 KEY - gib

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

19

700123774

SPROCKET ASSY.

SPROCKET WA - 60B30

1шт.

20

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 X 1-1/2 KEY - gib

1шт.

21

7086002

CHAIN (AG)

CHAIN - roller #60 (10 foot bulk)

2шт.

22

241-1416

LINK

- connector

2шт.

23

61739

KEY

1/4 X 2-1/4 KEY - gib

1шт.

24

700108659

SPROCKET ASSY.

SPROCKET WA - 60B36

1шт.

25

6268494

SPACER

1шт.

26

700108636

SUPPORT

WA

1шт.

27

700133129

SUPPORT

- latch

1шт.

28

700137719

AUGER

WA - right

1шт.

29

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

31

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

32

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 X 3-1/2 RHSNB

1шт.
