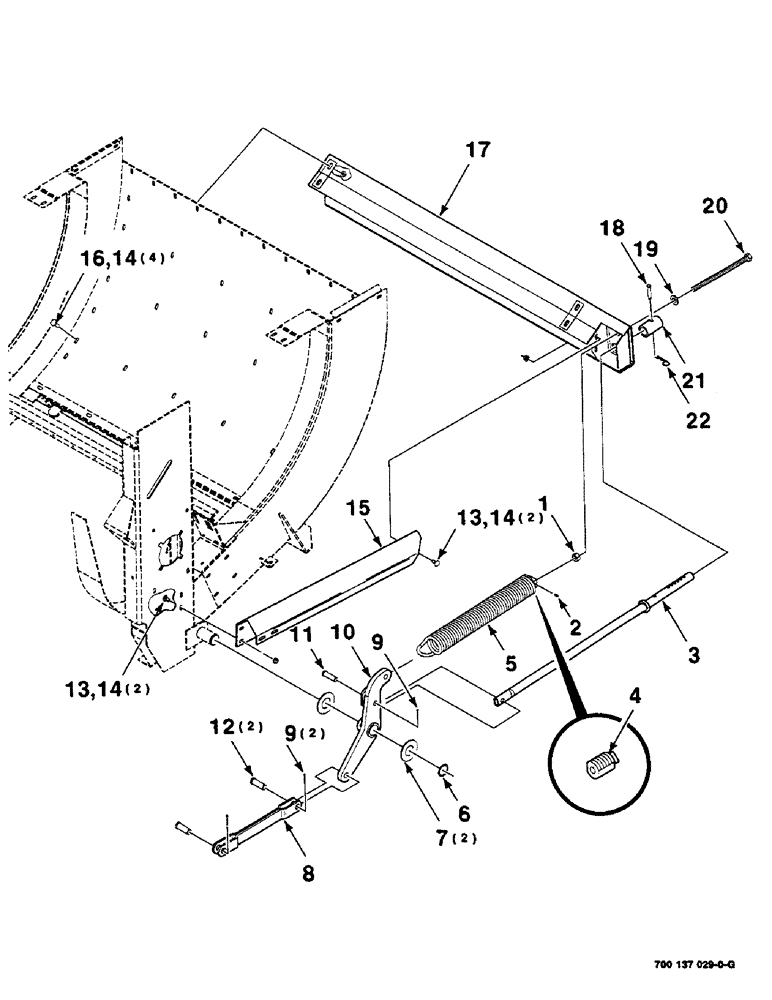

Запчасти Case IH 8585 (3-06) - PICKUP FLOTATION ASSEMBLY Pickup

1

425-1010

NUT,5/8"-11, G5

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

3

700123446

LINK

WA

1шт.

4

6845879

PLUG

- spring

1шт.

5

6522700

SPRING

ASSEMBLY (Includes item 4)

1шт.

6

100-11150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

7

740522

WASHER

1-1/2 X 10 GAUGE WRMB

2шт.

8

700123444

LINK

WA

1шт.

9

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

3шт.

10

700137784

CRANK

WA

1шт.

11

439-11032

HEADED PIN,15.88mm OD x 50.8mm L

5/8 X 2 CLEVIS PIN

1шт.

12

A35113

PIN

3/4 X 2 CLEVIS PIN

2шт.

13

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

14

231-5146

FLANGE NUT,3/8"-16

8шт.

15

700123321

SUPPORT

1шт.

16

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

17

700137753

SPACER

SUPPORT WA

1шт.

18

863381

CLIP,9.53mm OD x 50.8mm L

3/8 X 2 CLEVIS PIN

1шт.

19

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

20

702282

BOLT,Hex, 5/8" - 11 x 10", Gr 5

5/8-11 X 10 FTB

1шт.

21

700113296

COLLAR

1шт.

22

T54573

PIN

.120 WIRE HAIRPIN COTTER

1шт.
