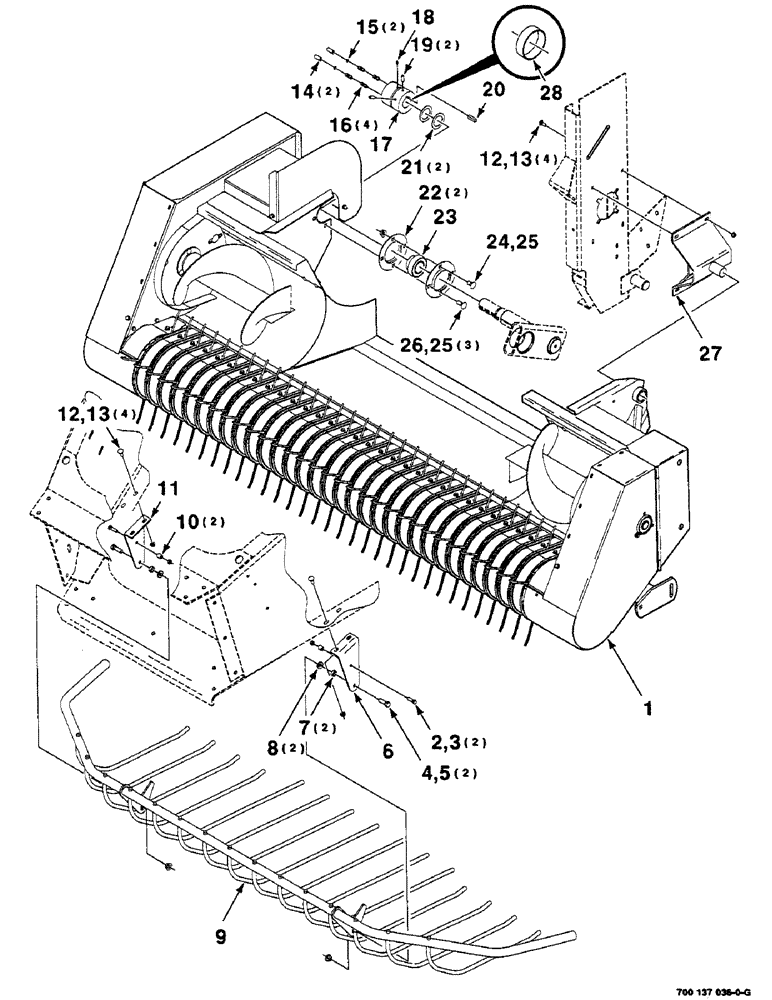

Запчасти Case IH 8585 (3-02) - WINDGUARD, PICKUP AND MOUNTING ASSEMBLIES Pickup

1

700138108

TINE

PICKUP ASSEMBLY

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

3

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GRB

2шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

6

700137775

SUPPORT

- left

1шт.

7

700708272

BUSHING

2шт.

8

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

9

700137776

GUARD

WINDGUARD WA

1шт.

10

1117878

BUSHING

2шт.

11

700137774

SUPPORT

- right

1шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

13

329-286

FLANGE NUT,Flg, 3/8"-16, G8

8шт.

14

37-1820

DOWEL,1/2" x 1 1/4"

1/2 X 1-1/4 DOWEL PIN

2шт.

15

700108669

LARGE PLATE

PLATE

2шт.

16

58511

COMPRESSION SPRING

SPRING - compression

4шт.

17

700137781

HUB

WA (Includes item 28)

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

19

83-616

SET SCREW,Hex Soc, 3/8"-16 x 1"

3/8-16 X 1 CPHSSS NP

2шт.

20

Q63

KEY,3/8" Sq x 1 1/2", Par

3/8 X 1-1/2 KEY

1шт.

21

NLS

NO LONGER SERVICED

1-3/4 X 14 GAUGE NRMB

2шт.

22

50583

FLANGED BEARING

- bearing

2шт.

23

51318

BEARING

- spherical

1шт.

24

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

1шт.

25

329-288

FLANGE NUT,Flg, 1/2"-13, G8

4шт.

26

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

3шт.

27

700123797

SUPPORT

- pickup, left

1шт.

28

740233

BUSHING

- bronze

1шт.
