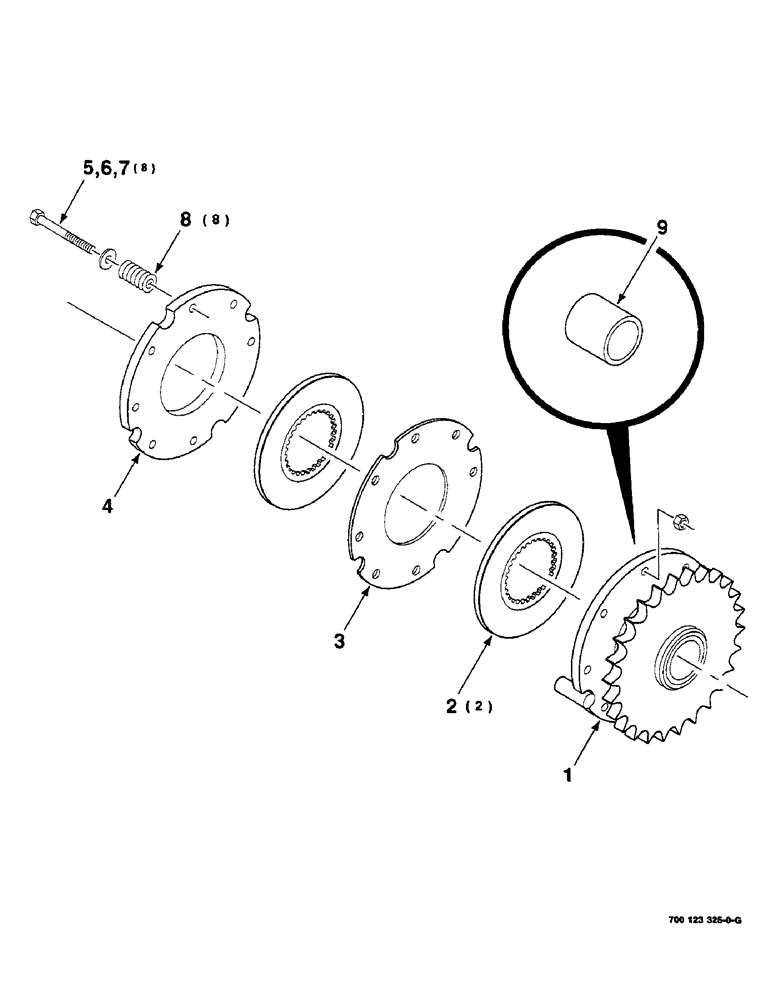

Запчасти Case IH 8585 (2-26) - SLIP CLUTCH ASSEMBLY Driveline

1

700137377

SPROCKET ASSY.

SPROCKET WA (Includes item 9)

1шт.

2

700108820

DISC

ASSEMBLY - friction

2шт.

3

700112903

CLUTCH PLATE,106mm ID x 220mm OD x 5mm Thk

PLATE - clutch

1шт.

4

6522866

CLUTCH PLATE

PLATE - clutch

1шт.

5

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8-16 X 4 C

8шт.

6

495-21044

WASHER,3/8"

8шт.

7

231-1406

LOCK NUT,3/8"-16, GB

3/8-16 LHSN

8шт.

8

58107

SPRING

- compression

8шт.

9

7852692

BRONZE BUSHING

BUSHING - bronze

1шт.
