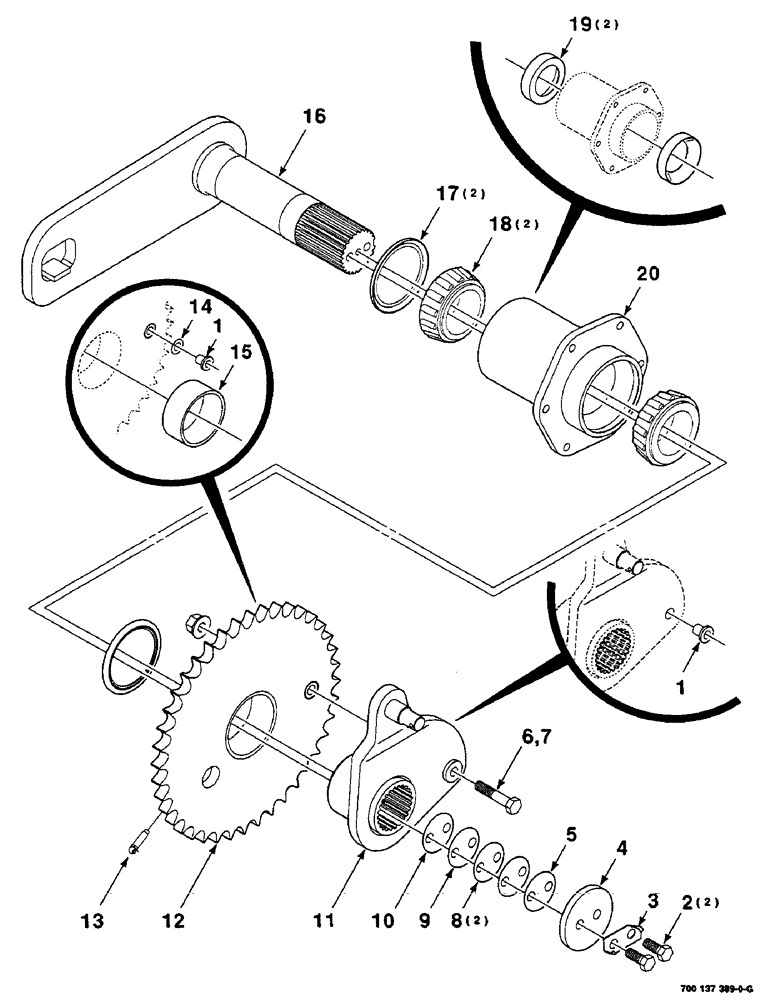

Запчасти Case IH 8585 (2-24) - SHAFT AND SPROCKET ASSEMBLY Driveline

1

700137396

SLEEVE

- shear bolt

2шт.

2

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

3

700137407

PLATE, LOCKING

TAB - lock

1шт.

4

700137408

CAP

- retainer

1шт.

5

700716247

SHIM

0.51/.020

1шт.

6

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

7

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

8

700716244

SHIM

0.076/.003

2шт.

9

700716245

SHIM

0.130/.0051

1шт.

10

700716246

SHIM

0.25/.010

1шт.

11

700137399

HUB

ASSEMBLY (Includes item 1)

1шт.

12

700137397

SPROCKET ASSY.

SPROCKET ASM - 100B40 tooth (Includes items 1, 14 and 15)

1шт.

13

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 90° ZERK

1шт.

14

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

1шт.

15

700112933

BRONZE BUSHING

BUSHING - bronze

1шт.

16

700137390

ARM

- wa

1шт.

17

700716267

SEALING RING COLLAR

SEAL - excluder

2шт.

18

65720C91

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

CONE - bearing

2шт.

19

65721C1

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

- cup

2шт.

20

700137393

HUB

ASSEMBLY (Includes item 19)

1шт.
