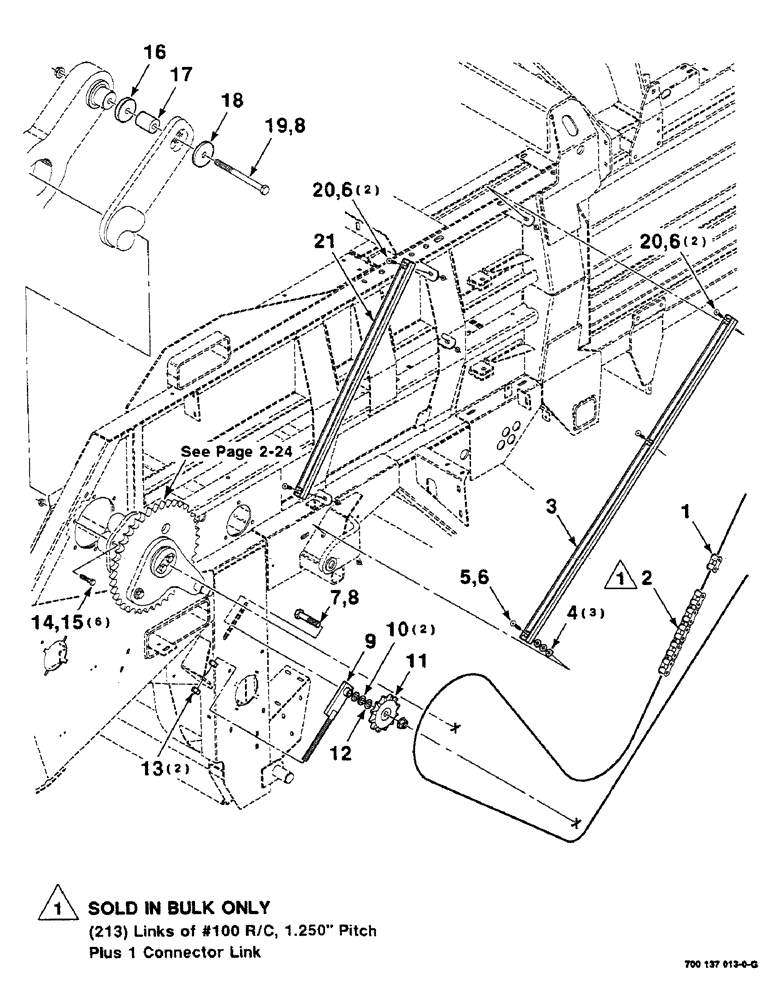

Запчасти Case IH 8585 (2-20) - AUXILIARY DRIVE ASSEMBLY, LEFT Driveline

1

241-44110

LINK,Chain, 31.75mm Pitch

- connector

1шт.

2

1795D

CHAIN (AG)

CHAIN - roller, #100 (10 foot bulk)

1шт.

3

700716265

GUIDE

- chain, lower

1шт.

4

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

3шт.

5

700704513

HEX SOC SCREW,Flat Hd, 3/8"-16 x 1 7/8"

3/8-16 X 2 HSFCHCS SPECIAL

1шт.

6

329-286

FLANGE NUT,Flg, 3/8"-16, G8

5шт.

7

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

1шт.

8

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

2шт.

9

700123337

SPECIAL BOLT

DRAWBOLT WA

1шт.

10

52183

BUSHING

3/4 X 18 GAUGE NRMB

2шт.

11

700706110

SPROCKET

- 100A12 tooth

1шт.

12

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 X 14 GAUGE NRMB

1шт.

13

425-1010

NUT,5/8"-11, G5

2шт.

14

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

15

329-288

FLANGE NUT,Flg, 1/2"-13, G8

6шт.

16

700137107

WASHER

- special

1шт.

17

700112930

BUSHING

1шт.

18

6579106

LARGE PLATE

PLATE - cap

1шт.

19

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

3/4-10 X 9 C

1шт.

20

164-53

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/2"

3/8-16 X 1-1/2 HSFCHCS SPECIAL

4шт.

21

700716264

GUIDE

- chain, upper

1шт.
