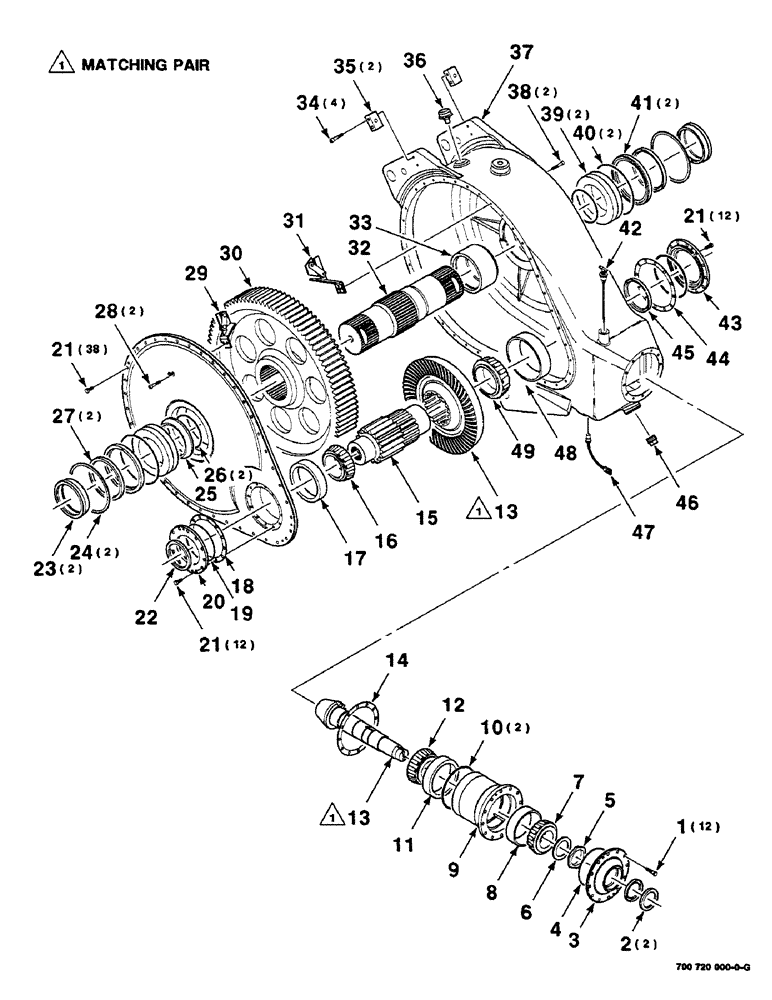

Запчасти Case IH 8585 (2-18) - GEARBOX ASSEMBLY, 700720000 GEARBOX ASSEMBLY COMPLETE Driveline

700720000

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

1

7703259

BOLT

M12 X 1.75 X 50 C

12шт.

2

700706045

SEAL

2шт.

3

700715985

SEAL

CARRIER - brg, seal

1шт.

4

700720024

O-RING

1шт.

5

700706065

NUT

- stake

1шт.

6

700706032

WASHER

- special

1шт.

7

700706030

ROLLER BEARING,76.2mm ID x 48.26mm W

CONE - bearing

1шт.

8

700706034

BEARING CUP,161.93mm OD x 38.1mm W

CUP - bearing

1шт.

9

700715983

CARRIER FLANGE SEAL

CARRIER - brg, seal

1шт.

10

700720023

O-RING

2шт.

11

700706029

BEARING CUP

CUP - bearing

1шт.

12

700706027

ROLLER BEARING,84.138 mm ID x 46.038 mm

CONE - bearing

1шт.

13

700715693

GEAR

PINION - bevel & ring-gear

2шт.

14

700720026

PACKAGE

PACK - shim, carrier

1шт.

15

700715541

PINION

1шт.

16

700715743

ROLLER BEARING,110 mm ID x 46 mm

CONE - bearing

1шт.

17

700715745

BEARING, CUP,180 mm OD x 38 mm

CUP - bearing

1шт.

18

700720008

PACKAGE

PACK - shim, intermediate, right

1шт.

19

700720025

RING

O-RING

1шт.

20

700720005

CAP

- bearing, interm

1шт.

21

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

62шт.

22

700715746

SEAL

1шт.

23

700112988

SPACER

- output

2шт.

24

700708037

SNAP RING

RING - retaining, spirolox

2шт.

25

700137100

SPACER

- right

1шт.

26

238-5257

O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro

2шт.

27

700708000

SEAL

2шт.

28

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

M10 X 1.5 X 55 HSHCS SPL

2шт.

29

700137115

SCRAPER

WA - right

1шт.

30

700715542

GEAR

- output

1шт.

31

700137114

SCRAPER

WA - left

1шт.

32

700715543

SHAFT

- output

1шт.

33

700137099

SPACER

- L

1шт.

34

861-12060

HEX SOC SCREW,M12 x 60mm, Cl 12.9

M12 X 1.75 X 60 HSHCS SPL

4шт.

35

700716685

BAR

- tensioner

2шт.

36

8799280

FILTER

1шт.

37

700720001

GEARBOX ASSY

GEARBOX ASM - machined

1шт.

38

861-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

M10 X 1.5 X 60 HSHCS SPL

2шт.

39

700706041

SPHERICAL BEARING,150 mm ID x 225 mm OD x 56 mm

BEARING - roller

2шт.

40

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

2шт.

41

700112993

SEAL

CAP - output

2шт.

42

700706144

DIPSTICK

GAGE - oil

1шт.

43

700720006

CAP

- bearing, interm

1шт.

44

700720007

PACKAGE

PACK - shim, intermediate, left

1шт.

45

700715747

SEAL

1шт.

46

217-532

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG, DRAIN, , Pipe Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

47

700716952

THERMOSTAT

ASSEMBLY

1шт.

48

S118458

BEARING, CUP,206.375 mm OD x 34.925 mm

CUP - bearing

1шт.

49

700715742

ROLLER BEARING,128.588 mm ID x 47.63 mm

CONE - bearing

1шт.
