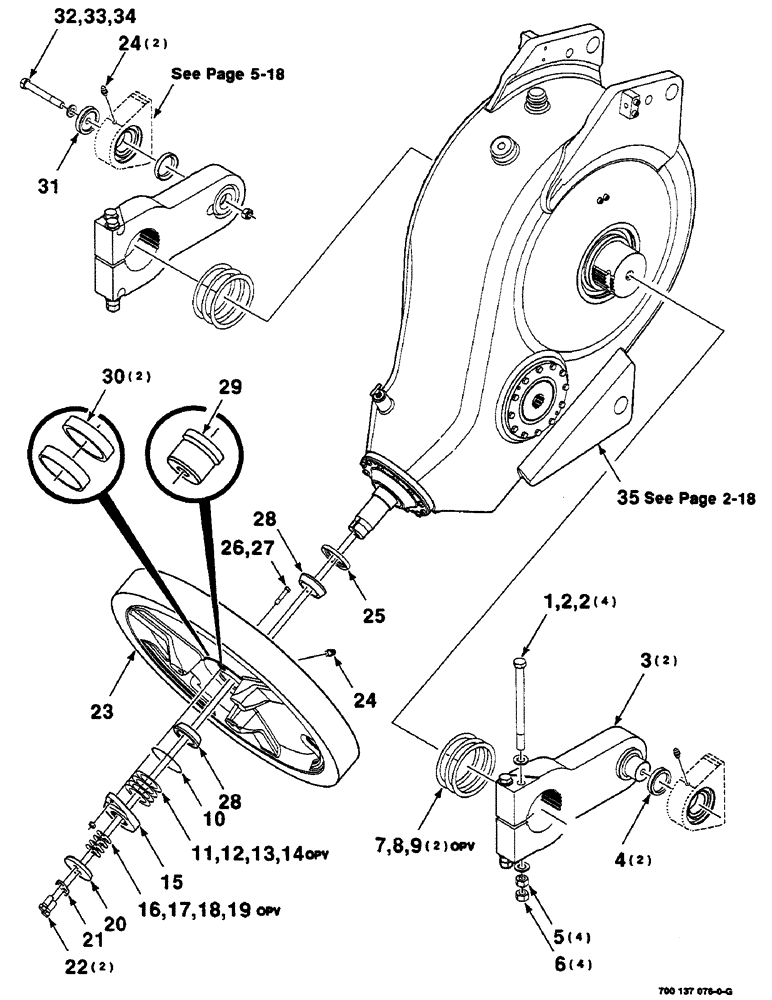

Запчасти Case IH 8585 (2-14) - GEAR ASSEMBLY FINAL Driveline

1

700716699

BOLT

7/8-9 X 12 C GR8

4шт.

2

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

7/8 HARDENED PLAIN WASHER

8шт.

3

700137103

ARM

WA - crank

2шт.

4

700137106

SPACER

- brg, crank arm

2шт.

5

429-1014

NUT,7/8"-9, G8

7/8-9 H GR8

4шт.

6

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

7

700708038

SHIM,150mm ID x 180mm OD x 0.25mm Thk

- 0.25/.010

2шт.

8

700708039

SHIM

- 0.64/.025

2шт.

9

700708041

SHIM,150mm ID x 180mm OD x 1.21mm Thk

- 1.2/.048

2шт.

10

700706050

O-RING

1шт.

11

700706056

SHIM

- 0.08/.003

1шт.

12

700706058

SHIM

- 0.25/.010

1шт.

13

700706057

SHIM

- 0.13/.005

1шт.

14

700707991

SHIM,63.5mm ID x 95mm OD x 0.51mm Thk

- 0.51/.020

1шт.

15

700137135

HUB

- shear

1шт.

16

700706059

SHIM

0.08/.003

1шт.

17

700707993

SHIM

0.51/.020

1шт.

18

700706061

SHIM

0.25/.010

1шт.

19

700706060

SHIM

0.13/.005

1шт.

20

700113044

RETAINING PLATE

CAP - retainer

1шт.

21

700113045

LOCKING PLATE

TAB - lock

1шт.

22

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

23

700124039

BALER FLYWHEEL

FLYWHEEL ASM (Includes items 29 and 30)

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

25

700706045

SEAL

1шт.

26

6521868

BOLT

7/16-14 X 2 1/8 LOCK THREAD SPL

1шт.

27

429-107

NUT,7/16"-14, G8

1шт.

28

78848C91

BEARING ASSY,61.98mm ID x 24.61mm W

CONE - bearing

2шт.

29

7852718

SLEEVE

- shear

1шт.

30

610513C1

BEARING CUP,101.6mm OD x 19.84mm W

BEARING - cup

2шт.

31

700137107

WASHER

- special

1шт.

32

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

3/4-10 X 6 C

1шт.

33

705566

WASHER

3/4 HARDENED PLAIN WASHER

1шт.

34

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

35

700720000

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.
