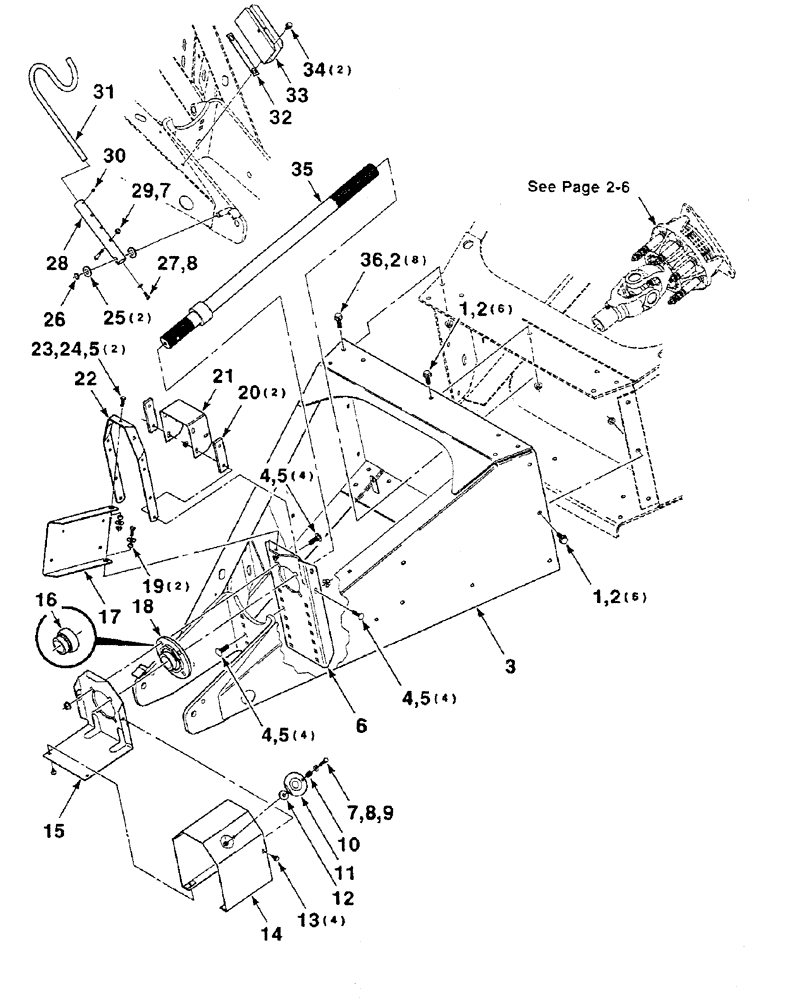

Запчасти Case IH 8585 (2-04) - TONGUE, DRIVE SHAFT, MOUNTING AND SHIELD ASSEMBLIES Driveline

1

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

12шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

20шт.

3

700138100

TOW BAR

TONGUE WA - front

1шт.

4

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

12шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

14шт.

6

700137644

SUPPORT

- IDL

1шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

9

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

10

CAS758342

SPRING

- compression

1шт.

11

700137803

COVER

SHIELD - cover

1шт.

12

700709866

WASHER

- washer, Camloc

1шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

14

700137800

ANGLE

SHIELD ASM - top

1шт.

15

700137797

SHIELD

WA - lower

1шт.

16

51318

BEARING

- spherical

1шт.

17

700137909

CHANNEL

SUPPORT

1шт.

18

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

BEARING ASSEMBLY - flanged (Includes item 16)

1шт.

19

700134804

SPACER

2шт.

20

700137995

SPACER

2шт.

21

700137905

CHANNEL

- IDL shield

1шт.

22

700137908

SUPPORT

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

2шт.

25

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

26

103-1162

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

27

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

28

700137791

TUBE

- IDS, support

1шт.

29

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

31

700137792

BAR

- support, IDL

1шт.

32

700137806

SPACER

1шт.

33

700137621

CHANNEL

- retainer

1шт.

34

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

2шт.

35

700137795

SHAFT

ASSEMBLY

1шт.

36

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

8шт.
