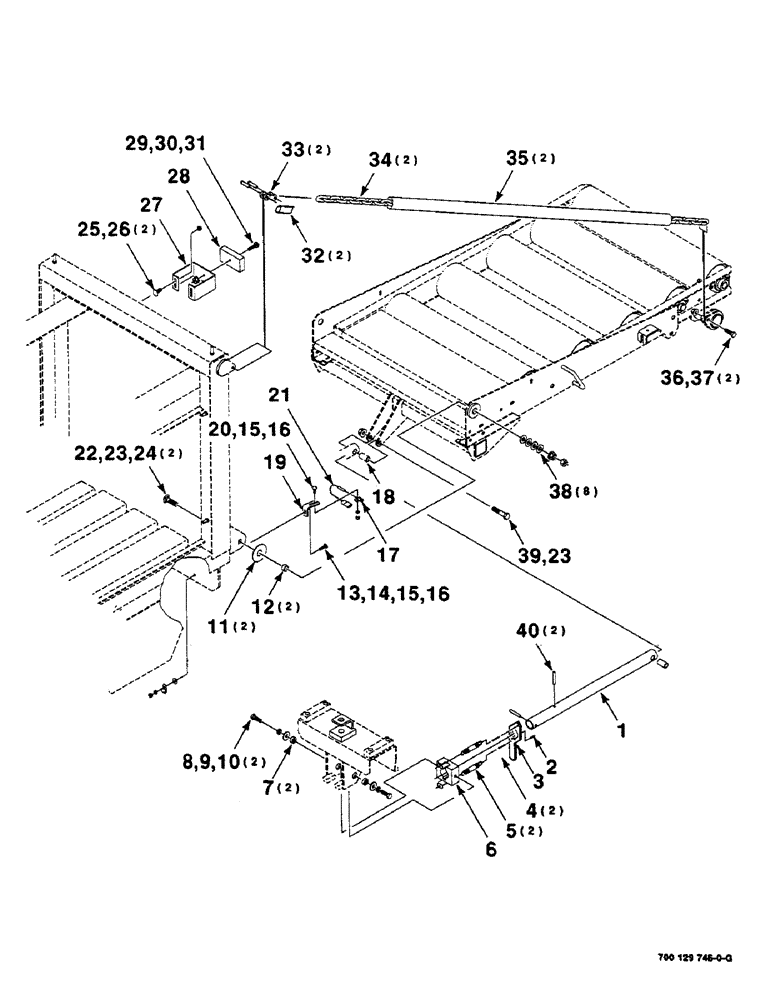

Запчасти Case IH 8585 (9-24) - BALE ROLLER CHUTE ASSEMBLY, (CONT) Decals & Attachments

1

700129753

TUBE,41.28 mm OD, 705 mm Length

ASSEMBLY - push

1шт.

2

38-11608

LOCK PIN,1/4" x 1/2", Slotted

3/16 X 1/2 COILED SPRING PIN

1шт.

3

700129768

HANDLE

ASSEMBLY

1шт.

4

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

5

700709843

SPRING

- extension

2шт.

6

700129755

TRUNNION

TRUNION WA

1шт.

7

378604

SPACER

2шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

2шт.

11

700714065

WASHER

- brass

2шт.

12

700121805

SPACER

BUSHING

2шт.

13

111-122

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 1/4", G5

1шт.

14

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

1шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

425-104

NUT,1/4"-20, Cl 5

2шт.

17

751321

CLAMP

1/4 CLAMP

1шт.

18

6475842

SPACER

1шт.

19

700129761

BRACKET

ANGLE - switch

1шт.

20

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

1шт.

21

700113863

SENSOR

SWITCH ASSEMBLY

1шт.

22

433-1044

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

5/8-11 X 2-3/4 RHSNB

2шт.

23

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

3шт.

24

425-1010

NUT,5/8"-11, G5

2шт.

25

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

26

231-5146

FLANGE NUT,3/8"-16

2шт.

27

700129682

SUPPORT

- pad

1шт.

28

700707584

PAD

- neoprene

1шт.

29

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

1шт.

30

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

1шт.

31

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

32

700714066

PIN

- safety

2шт.

33

ZJC606M

HOOK

LINK - mid (Pins included)

2шт.

34

700714047

CHAIN (AG)

CHAIN

2шт.

35

700714150

HOSE PROTECTION,38.10 mm ID x 1400.00 mm

Sleeve

2шт.

36

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

37

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

38

700712616

SPRING WASHER

- spring

8шт.

39

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 C

1шт.

40

38-12036

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.
