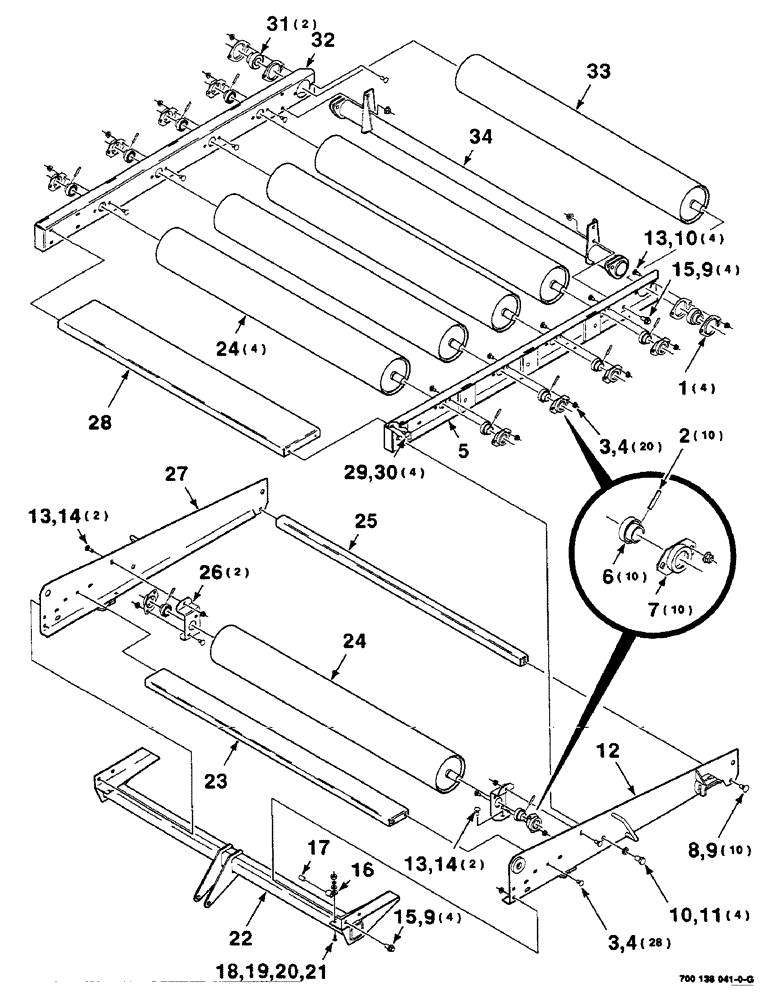

Запчасти Case IH 8585 (9-22) - BALE CHUTE, ROLLER KIT, HK40934 BALE CHUTE, ROLLER KIT COMPLETE TO BE ORDERED THRU WHOLEGOODS ONLY Decals & Attachments
№
Артикул
Название
Примечание
Количество
HK40934
BALE CHUTE ROLLER KIT COMPLETE
1шт.
1
581469R1
FLANGE,Bearing
- bearing
4шт.
2
38-11624
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, 1/4" x 1 1/2", Slotted
10шт.
3
433-612
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
48шт.
5
700129724
CHANNEL
WA - left
1шт.
6
710392
BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm
BEARING - cylindrical special
10шт.
7
700108622
FLANGED BEARING
FLANGE - bearing
10шт.
8
433-816
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
1/2-13 X 1 RHSNB
10шт.
9
231-5348
FLANGE NUT,Flg, 1/2"-13
1/2-13 HFTLN GR/G
18шт.
10
413-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 5
5/8-11 X 1 C
8шт.
11
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
12
700129744
ANGLE
WA - left
1шт.
13
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3/8-16 X 1 RHSNB
8шт.
14
329-286
FLANGE NUT,Flg, 3/8"-16, G8
4шт.
15
360-816
BOLT,Hex, 1/2" - 13 x 1", Gr 8
1/2-13 X 1 HFS GR8
8шт.
16
751321
CLAMP
1шт.
17
700706340
MAGNET
1шт.
18
434-412
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
1/4-20 X 3/4 RHSNB
1шт.
19
495-21031
WASHER,1/4"
1/4 WIDE PLAIN WASHER
1шт.
20
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
21
425-104
NUT,1/4"-20, Cl 5
1шт.
22
700138042
SUPPORT
WA
1шт.
23
700138050
SHIELD
1шт.
24
700138044
TUBE,143.18 mm Diameter, 1233 mm Length
WA - front
5шт.
25
700138046
CHANNEL
- rear
1шт.
26
700138052
SUPPORT
- roller
2шт.
27
700129745
ANGLE
WA - right
1шт.
28
700138051
SHIELD
1шт.
29
121-115
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
4шт.
30
232-5315
FLANGE NUT,Flg, 5/16"-18
5/16-18 HFTLN GR/G
4шт.
31
700708095
SPHERICAL BEARING
BEARING - spherical
2шт.
32
700129756
CHANNEL
WA - right
1шт.
33
700138049
TUBE,143.18 mm Diameter, 1233 mm Length
WA - rear
1шт.
34
700138047
SUPPORT
WA
1шт.
Выбрано товаров: 35
