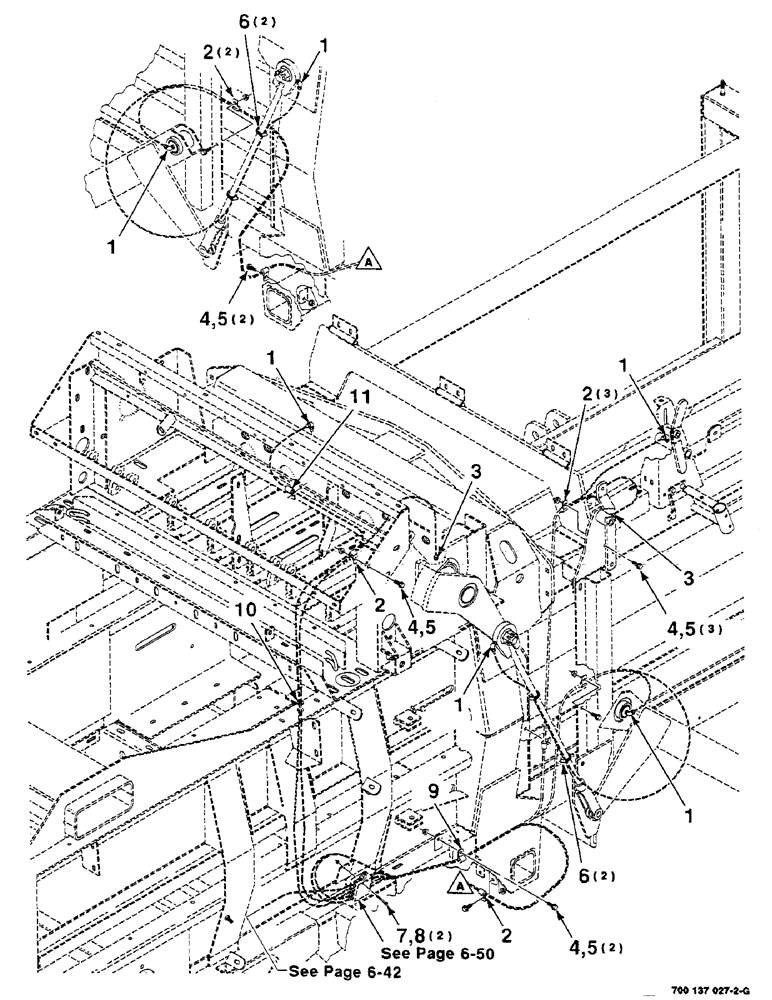

Запчасти Case IH 8585 (6-44) - LUBE, CENTRALIZED, REAR (14) - BALE CHAMBER

1

700706682

FRONT AXLE

ELBOW - 90° 1/8 NPT

6шт.

2

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

7шт.

3

219-300

ROD, CONNECTING

CONNECTOR - male 1/8 NPT

2шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

5

329-286

FLANGE NUT,Flg, 3/8"-16, G8

8шт.

6

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

4шт.

7

7701444

SCREW

#10-32 X 1-3/4 HWHMS

2шт.

8

225-14210

NUT,#10-32

2шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

10

248-13101

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

1шт.

11

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 CLAMP

1шт.
