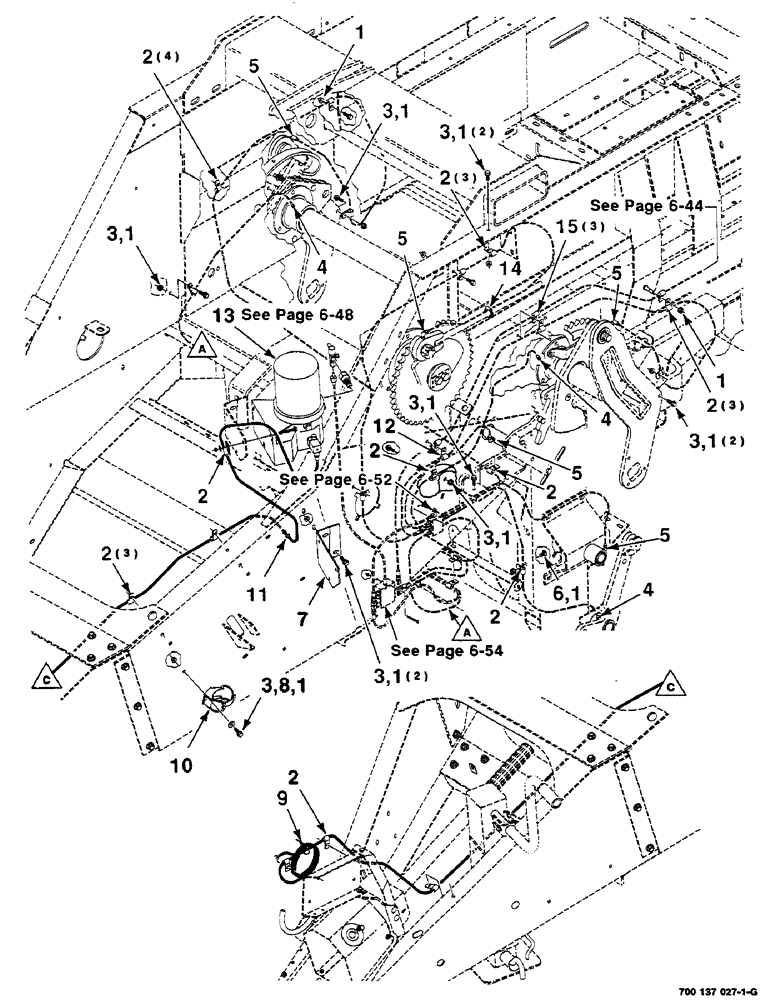

Запчасти Case IH 8585 (6-42) - LUBE ASSEMBLY, FRONT (14) - BALE CHAMBER

1

329-286

FLANGE NUT,Flg, 3/8"-16, G8

14шт.

2

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 CLAMP

18шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

11шт.

4

219-300

ROD, CONNECTING

CONNECTOR - male 1/8 NPT

3шт.

5

700706682

FRONT AXLE

ELBOW - 90° 1/8 NPT

5шт.

6

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

7

700137643

BRACKET

WA

1шт.

8

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

10

700707011

HOLDER

- grease gun

1шт.

11

7027352

RUBBER

GROMMET

1шт.

12

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

13

700720087

LUBE PUMP

PUMP - lube

1шт.

14

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

1шт.

15

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

3шт.
