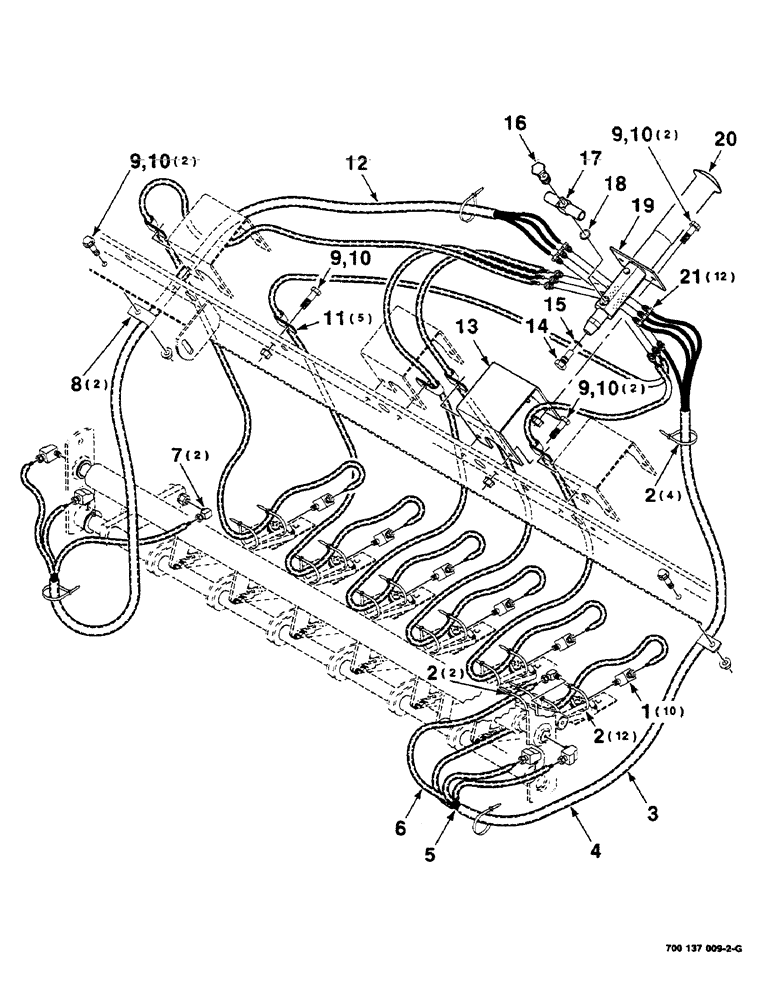

Запчасти Case IH 8585 (6-30) - LUBE PUMP AND LINE ASSEMBLY, TWINE FINGER (14) - BALE CHAMBER

1

51200288

ELBOW

- male

10шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

18шт.

3

700123461

WIRE HARNESS

HARNESS ASSEMBLY - left

1шт.

4

700123362

FLEXIBLE SHEATH

1/2 COVERING - protective (10 foot bulk)

1шт.

5

700113359

TUBE,0.125" OD, 3048 mm Length

TUBING - nylon (10 foot bulk)

1шт.

6

700113360

FLEXIBLE SHEATH

1/4 COVERING - protective (10 foot bulk)

1шт.

7

700706279

COUPLING, QUICK, FEM

COUPLER - snap on

2шт.

8

700711751

CLAMP

2шт.

9

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

7шт.

10

1703354

NUT

1/4-20 HFTLN GR/G

7шт.

11

751321

CLAMP

5шт.

12

700122683

WIRE HARNESS

HARNESS ASSEMBLY - right

1шт.

13

700113353

SUPPORT

1шт.

14

700706539

PLUG

- stop

1шт.

15

700706540

COPPER WASHER

GASKET

1шт.

16

700706543

3 WAY CONNECTION

STUD - tee

1шт.

17

700706542

3 WAY CONNECTION

NIPPLE - tee

1шт.

18

700706541

COPPER WASHER

GASKET

1шт.

19

700113361

SUPPORT

- pump

1шт.

20

700706276

SMALL PUMP

PUMP - multiluber

1шт.

21

700706277

TUBE NUT

- compression

12шт.
