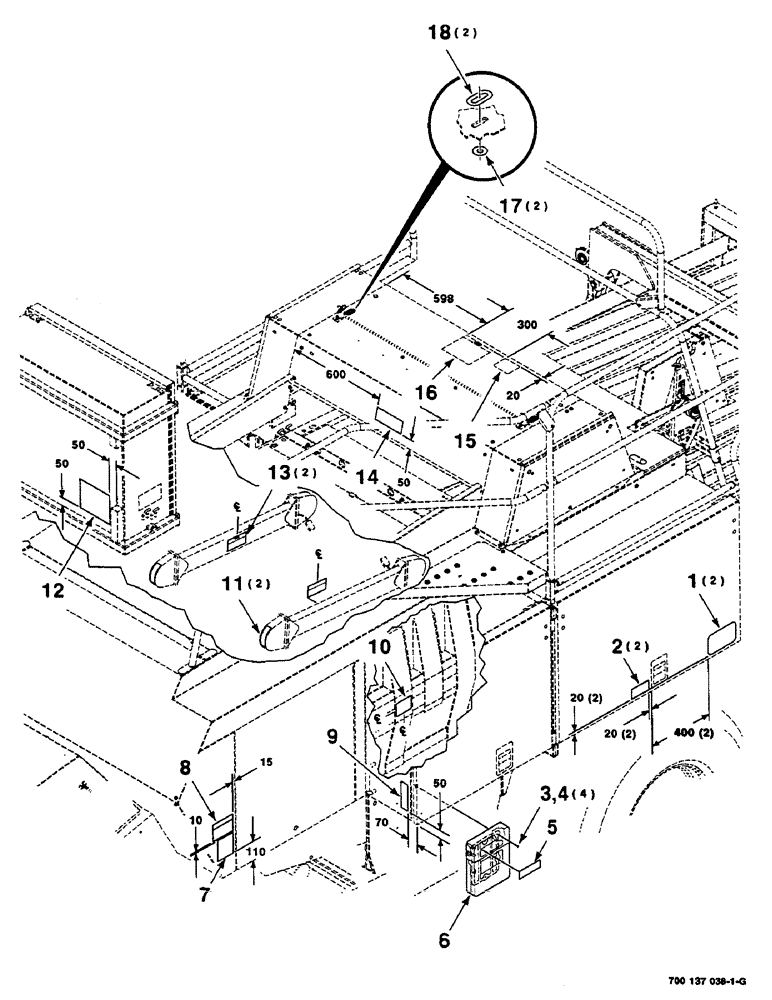

Запчасти Case IH 8585 (9-04) - DECALS AND LOCATION DIAGRAM, OPERATIONAL Decals & Attachments

1

700700036

DECAL

- danger

2шт.

2

700717107

DECAL

- pressure, torque

2шт.

3

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 X 1/2 CRPHMS GR60M

4шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

5

700714585

DECAL

- manual, holder

1шт.

6

700714418

HOLDER

- manual

1шт.

7

700717110

DECAL

- shear bolt

1шт.

8

700714229

DECAL

- warning

1шт.

9

878694

REFLECTOR

- amber

1шт.

10

8877334

DECAL

- information

1шт.

11

700711336

DECAL

- indicator

2шт.

12

700717111

DECAL

- stuffer, brake

1шт.

13

700706647

DECAL

- notice

2шт.

14

700717109

DECAL

- twine tension

1шт.

15

8888018

DECAL

- twine routing

1шт.

16

700710040

DECAL

- lube

1шт.

17

700709866

WASHER

- washer, camloc

2шт.

18

700709867

DECAL

- slot, camloc

2шт.
