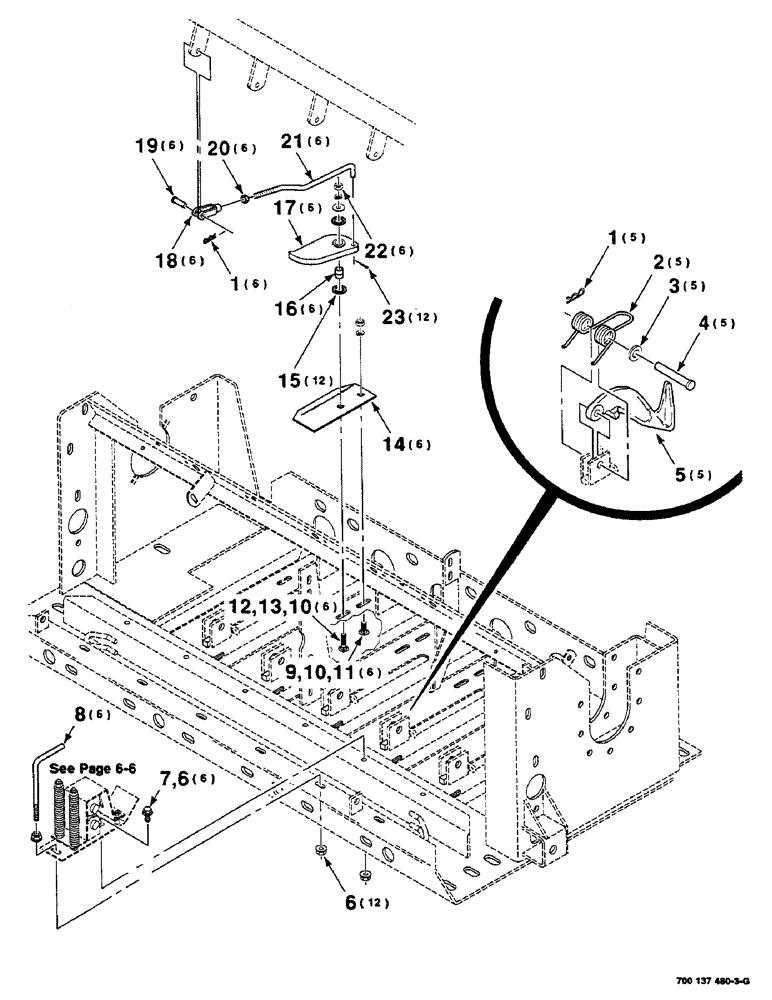

Запчасти Case IH 8585 (6-24) - KNOTTER TWINE FINGER AND HAY DOG ASSEMBLY (14) - BALE CHAMBER

1

S120261

PIN

.149 WIRE HAIRPIN COTTER

11шт.

2

700706376

SPRING

- torsion

5шт.

3

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

5шт.

4

439-11060

HEADED PIN,15.88mm OD x 95.25mm L

5/8 X 3-3/4 CLEVIS PIN

5шт.

5

700137655

DOG

HAY DOG

5шт.

6

231-5146

FLANGE NUT,3/8"-16

18шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

6шт.

8

702400048

ROD

6шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

10

492-11038

LOCK WASHER,3/8"

12шт.

11

425-106

NUT,3/8"-16, Cl 5

6шт.

12

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

6шт.

13

495-21044

WASHER,3/8"

6шт.

14

700122682

LARGE PLATE

PLATE - finger

6шт.

15

8044695

SEAL,15.37mm ID x 30.56mm OD x 1.96mm Thk

12шт.

16

700122681

BUSHING,10.34mm ID x 15.88mm OD x 19.18mm L

BUSHING

6шт.

17

700113345

FINGER

- twine

6шт.

18

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, 3/8"-24 x 2 1/2"

6шт.

19

063586

CLEVIS PIN

3/8 X 1-1/8 CLEVIS PIN

6шт.

20

425-156

JAM NUT,Jam, 3/8"-24, G5

6шт.

21

6523740

ROD

- finger

6шт.

22

425-146

JAM NUT,3/8" - 16, Gr 5

3/8-16 HJN GR2

6шт.

23

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

12шт.
