Запчасти Case IH 8585 (6-20) - DRIVE CLUTCH ASSEMBLY, KNOTTER CAM (14) - BALE CHAMBER

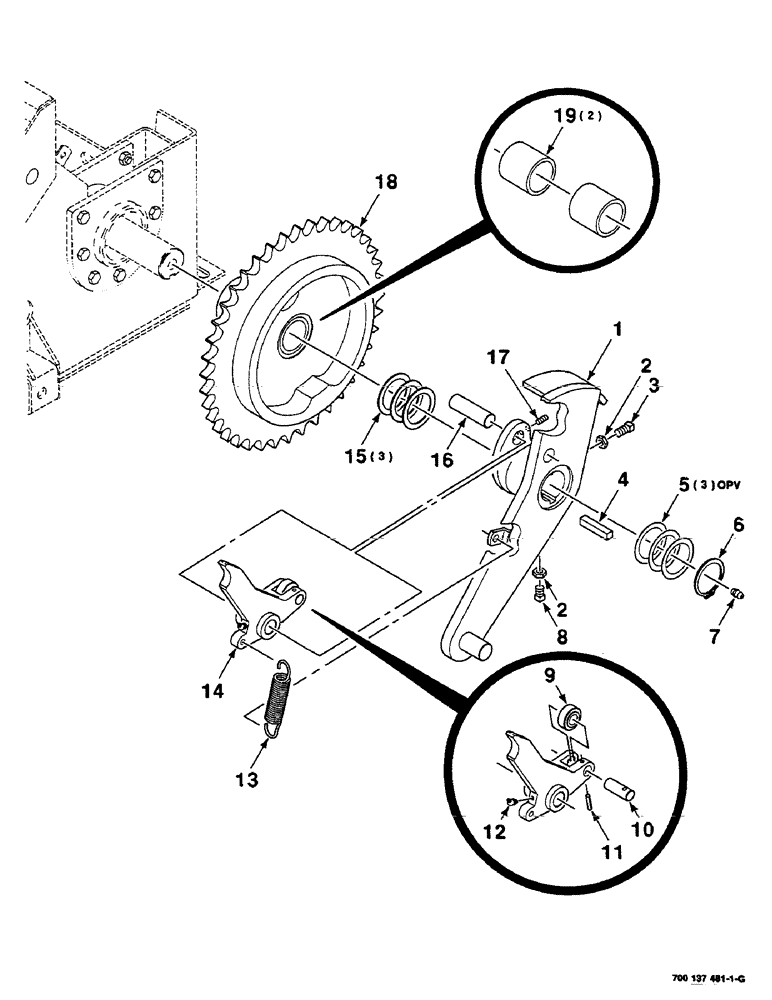

Схема запчастей Case IH 8585 - (6-20) - DRIVE CLUTCH ASSEMBLY, KNOTTER CAM (14) - BALE CHAMBER
2
16
1
19
13
2
8
18
5
3
6
9
17
7
15
10
11
12
4
14

Артикул

Название

Примечание

Количество

1

700137474

ARM

WA - clutch

1шт.

2

700710414

JAM NUT

1/2-13 HJN GR8 NP

2шт.

3

708081

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

1/2-13 X 1-1/4 CPSQHSS NP

1шт.

4

61879

KEY

1/2 X 1/2 X 2-1/2 KEY

1шт.

5

6523534

SHIM

3шт.

6

101-11215

SNAP RING,#215, 2.026", Ext

RING, SNAP, , Retaining #215, 2.026", Ext

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 STR ZERK

1шт.

8

85-816

SET SCREW,Sq Hd, 1/2"-13 x 1"

1/2-13 X 1 CRSQHSS NP

1шт.

9

6524623

ROLLER,41.28mm OD x 18.67mm L

1шт.

10

6524649

PIN

SHAFT - clutch

1шт.

11

135-358

GROOVED PIN,1/4" x 1 1/4", Type F

Pin, Grooved, 1/4" x 1 1/4", Type F

1шт.

12

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45° ZERK

1шт.

13

758268

SPRING

- extension

1шт.

14

700124052

ARM

ASSEMBLY - clutch (Includes items 9, 10, 11 and 12)

1шт.

15

6523500

WASHER

BUSHING

3шт.

16

6523518

SHAFT

- clutch

1шт.

17

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16-18 X 3/4 HDPHSSS

1шт.

18

700137486

SPROCKET,40T

- cam (Includes item 19)

1шт.

19

700122883

BRONZE BUSHING

BEARING - bronze

2шт.

Выбрано товаров: 19
