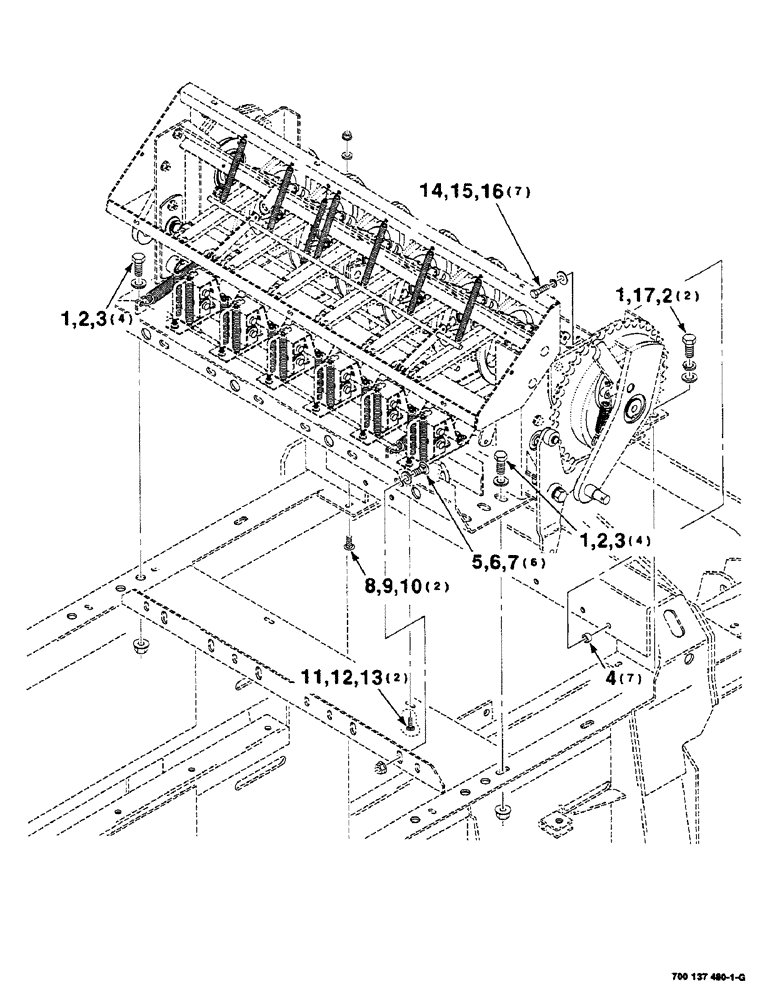

Запчасти Case IH 8585 (6-10) - KNOTTER MOUNTING (14) - BALE CHAMBER

1

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

10шт.

2

705566

WASHER

3/4 HARDENED PLAIN WASHER

10шт.

3

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

8шт.

4

6591614

SPACER,14.27mm ID x 23.01mm OD x 13mm L

7шт.

5

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 RHSNB

6шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

6шт.

7

7704919

FLANGE NUT,Flg, 5/8"-11, G8

5/8-11 HFN GR8

6шт.

8

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

9

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

10

329-288

FLANGE NUT,Flg, 1/2"-13, G8

2шт.

11

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

13

329-286

FLANGE NUT,Flg, 3/8"-16, G8

2шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

7шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

16

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

7шт.

17

492-11075

LOCK WASHER,3/4"

3/4"

2шт.
