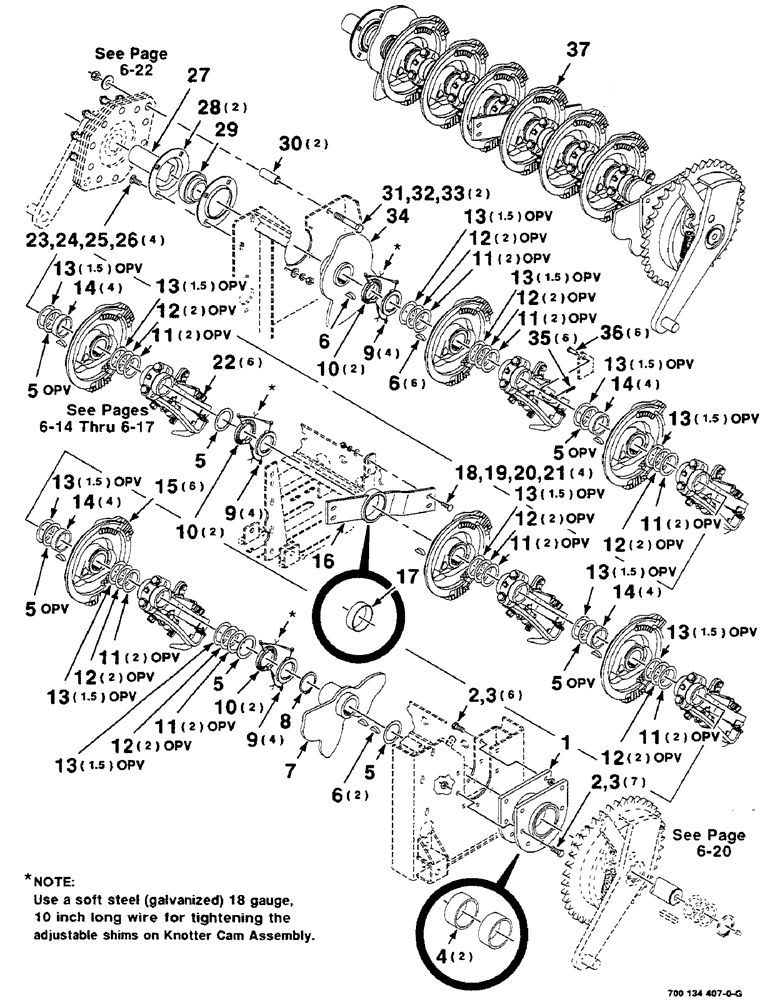

Запчасти Case IH 8580 (06-12) - DRIVE AND CAM ASSEMBLY, REPLACEMENT KNOTTER (14) - BALE CHAMBER

1

6844773

ASSEMBLY

BRACKET - mounting (Includes item 4)

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

13шт.

3

230-4218

LOCK NUT,1/2"-13, GA

1/2-13 HCLN GR/A

13шт.

4

6565014

BRONZE BUSHING,89.08mm ID x 101.8mm OD x 44.58mm L

BUSHING - bronze

2шт.

5

6523500

WASHER

BUSHING

7шт.

6

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

9шт.

7

700113328

CAM

WA - twine

1шт.

8

101-11215

SNAP RING,#215, 2.026", Ext

RING, SNAP, , Retaining #215, 2.026", Ext

1шт.

9

168-24

DRIVE SCREW,Type U, Rnd Hd, #10 - 24 x 1/2"

#10 X 1/2 TYPE U ROUND HEAD DRIVE SCREW

12шт.

10

6591457

SHIM

- half, adjustable

6шт.

11

6613665

SHIM,57.15mm ID x 76.2mm OD x 0.13mm Thk

- .005

16шт.

12

6523534

SHIM

16шт.

13

6523542

SHIM

- .031

18шт.

14

6591549

SPACER

16шт.

15

700134447

GEAR

- knotter

6шт.

16

6591465

ASSEMBLY

BRACKET ASSEMBLY (Includes item 17)

1шт.

17

6591564

BRONZE BUSHING

BUSHING - bronze

1шт.

18

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

22

700113321

KNOTTER

HEAD ASSEMBLY - knotter

6шт.

23

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.

24

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

27

6591366

SHAFT

- knotter

1шт.

28

714360

FLANGED BEARING

FLANGE

2шт.

29

8050478

BALL BEARING,55.56mm ID x 100mm OD x 21mm W

BEARING - spherical

1шт.

30

235663

BUSHING

2шт.

31

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8-11 X 3-3/4 C

2шт.

32

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

2шт.

33

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

34

700113325

CAM

WA - Tucker

1шт.

35

S120261

PIN

.149 HAIRPIN COTTER

6шт.

36

063586

CLEVIS PIN

3/8 X 1-1/8 CLEVIS PIN

6шт.

37

700134407

KNOTTER

ASSEMBLY (Complete with lube)

1шт.
