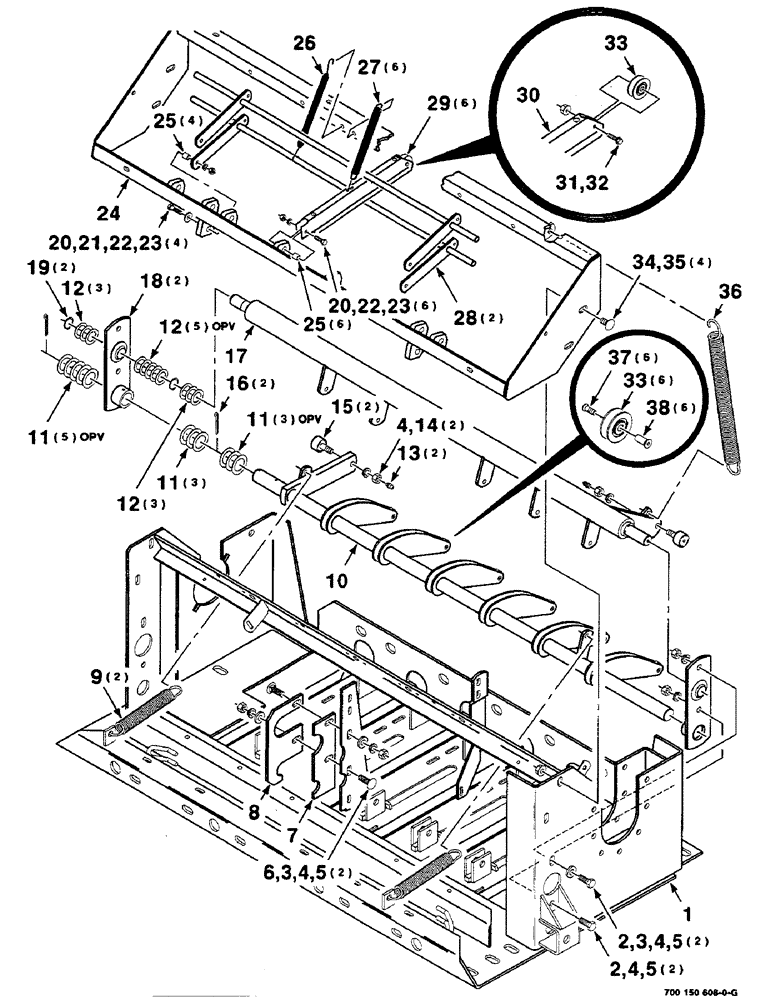

Запчасти Case IH 8580 (06-08) - KNOTTER FRAME ASSEMBLY, REPLACEMENT KNOTTER (14) - BALE CHAMBER

1

700113311

FRAME

WA - knotter

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

3

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

6

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

2шт.

7

6845713

LARGE PLATE

PLATE

1шт.

8

6845721

BRACKET

1шт.

9

858308

SPRING

- extension

2шт.

10

700113336

ARM

WA - Tucker (Includes items 33, 37 and 38)

1шт.

11

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

11шт.

12

195-2103

WASHER,1 1/16" x 1 1/2" x .065"

1 X 18 GAUGE NRMB

11шт.

13

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, 3/16" x .55" lg, Drive

2шт.

14

425-118

NUT,1/2"-20, G5

1/2-20 H

2шт.

15

8050866

CAM FOLLOWER

BEARING - cam follower

2шт.

16

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

2шт.

17

700113330

SHAFT

WA - finger

1шт.

18

700113342

SUPPORT

WA

2шт.

19

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, #100, Ext, Crescent

2шт.

20

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

10шт.

21

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

4шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

23

425-105

NUT,5/16"-18, G5

10шт.

24

6844971

BRACKET

WA

1шт.

25

6523799

BUSHING

10шт.

26

700712484

SPRING

- extension

1шт.

27

758482

TENSION SPRING

SPRING - extension

6шт.

28

700113346

ROD

WA

2шт.

29

700150609

ARM

- tension (Includes items 30, 31, 32 and 33)

6шт.

30

700150610

ARM

- tension

1шт.

31

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

1шт.

32

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

33

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

BEARING

7шт.

34

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

4шт.

35

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

36

700714985

SPRING

- extension

1шт.

37

164-102

HEX SOC SCREW,FLAT, #10 - 32 x 1/2"

#10-32 X 1/2 HSFCHCS

6шт.

38

866566

FASTENER,#10 - 32 x 9/16"

#10-32 FASTENER - special

6шт.
