Запчасти Case IH 8580 (06-05) - KNOTTER MOUNTING AND GREASE ZERK ASSEMBLY, NON-CENTRALIZED LUBE (14) - BALE CHAMBER

1

222-2101

ELBOW,90 Degree, Flareless, 5/16"-24 x 1/8 NPT

1/8 NPTF X 3/16 ELBOW

1шт.

2

6845929

LINE

- grease

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8 NPTF STR ZERK

2шт.

4

222-1676

ELBOW

1/8 NPTF ELBOW - compression

1шт.

5

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

7шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

7

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

7шт.

8

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 X 1-3/4 C

10шт.

9

492-11075

LOCK WASHER,3/4"

3/4"

10шт.

10

705566

WASHER

3/4 HARDENED PLAIN WASHER

14шт.

11

425-1012

NUT,3/4"-10, G5

3/4-10 H

8шт.

12

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 RHSNB

6шт.

13

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

6шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

15

425-1010

NUT,5/8"-11, G5

6шт.

16

6591614

SPACER,14.27mm ID x 23.01mm OD x 13mm L

7шт.

17

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

18

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

20

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

8шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

8шт.

26

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

24шт.

27

219-417

LUBE NIPPLE,1/4" - 28 NPTF

1/4-28 X 1-5/8 STRAIGHT ZERK

6шт.

28

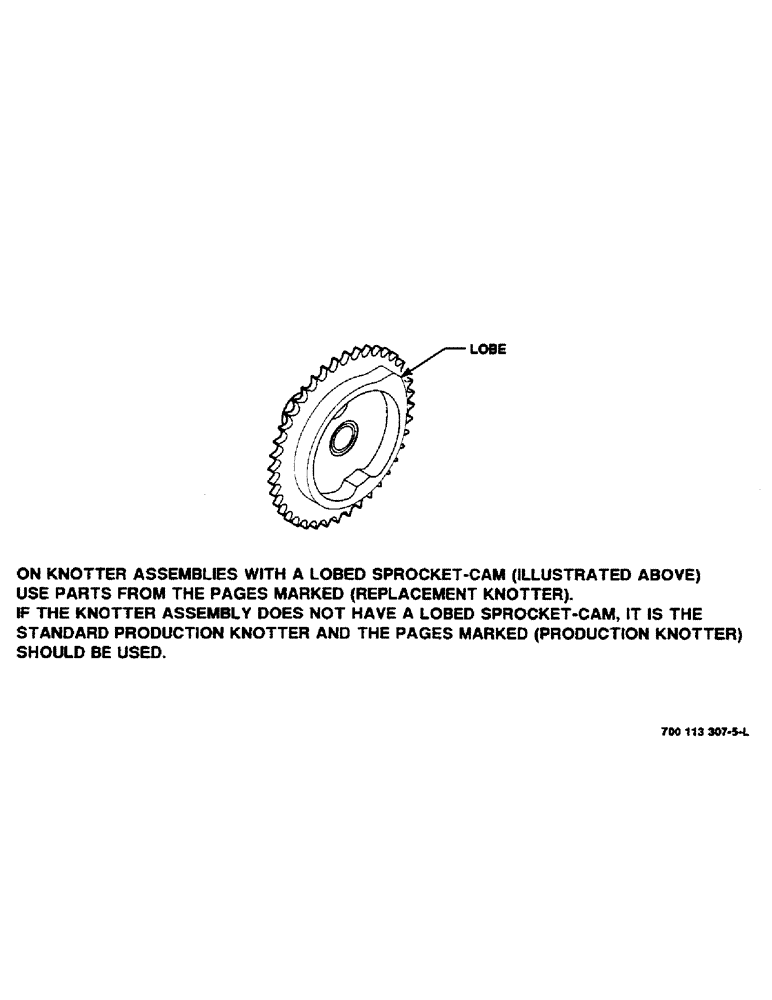

700113307

KNOTTER

ASSEMBLY W/O LUBE

1шт.

700150608

KNOTTER

ASSEMBLY

1шт.
