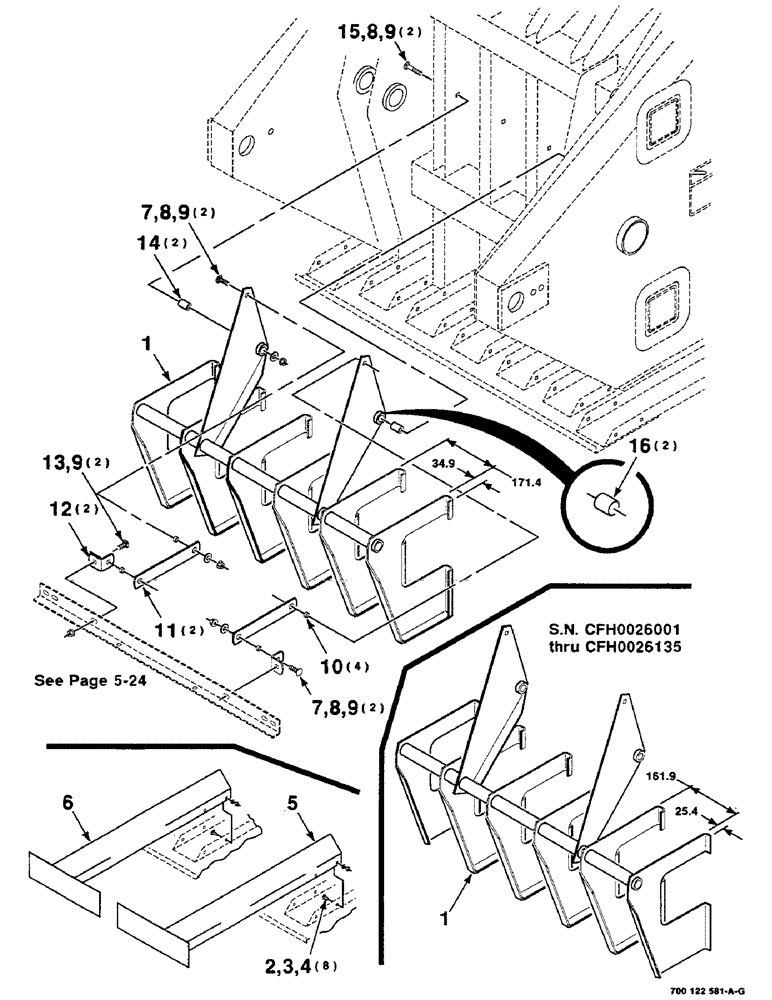

Запчасти Case IH 8580 (05-28) - PLUNGER CLEANER AND SCRAPER ASSEMBLY (13) - FEEDER

1

700122589

SUPPORT

BLADE WA (Includes item 11) (S.N. CFH0026001 thru CFH0026135)

1шт.

700122582

SUPPORT

BLADE WA (Includes item 16) (S.N. CFH0026136 and later)

1шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

425-105

NUT,5/16"-18, G5

8шт.

5

700114014

SCRAPER

WA - left

1шт.

6

700114015

SCRAPER

WA - right

1шт.

7

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

8

495-21044

WASHER,3/8"

6шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

10

6232946

BUSHING

4шт.

11

700122587

SHIN

STRAP

2шт.

12

700122588

ANGLE

2шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

14

6518302

SPACER

2шт.

15

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

2шт.

16

740787

BRONZE BUSHING

BUSHING - bronze

2шт.
