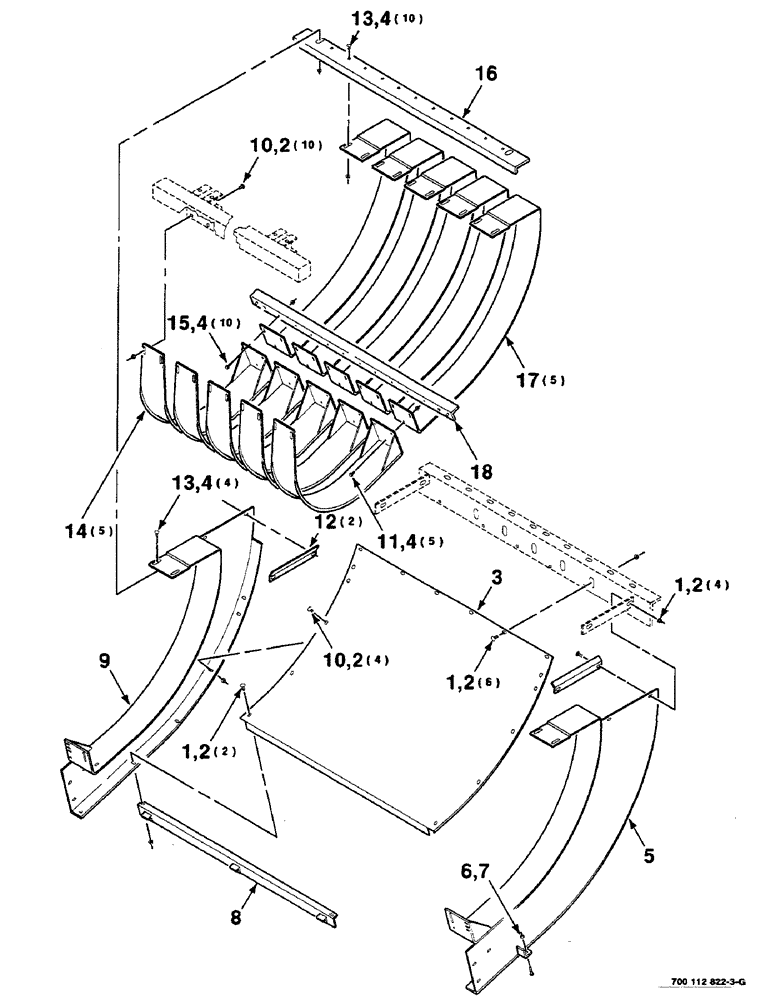

Запчасти Case IH 8580 (05-18) - FEEDER CHUTE ASSEMBLY (13) - FEEDER

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

12шт.

2

231-5146

FLANGE NUT,3/8"-16

26шт.

3

700112814

PANEL

- rear

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

29шт.

5

700112802

SUPPORT

PANEL WA - left

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

FTC Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

8

6844724

SUPPORT

WA

1шт.

9

700112803

SUPPORT

PANEL WA - right

1шт.

10

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

14шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

5шт.

12

6579742

ANGLE

2шт.

13

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

14шт.

14

700112800

GUIDE

WRAPPER WA

5шт.

15

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

10шт.

16

700113432

ANGLE

1шт.

17

700112811

GUIDE

STRAP - inside, rear

5шт.

18

700112819

ANGLE

WA

1шт.
