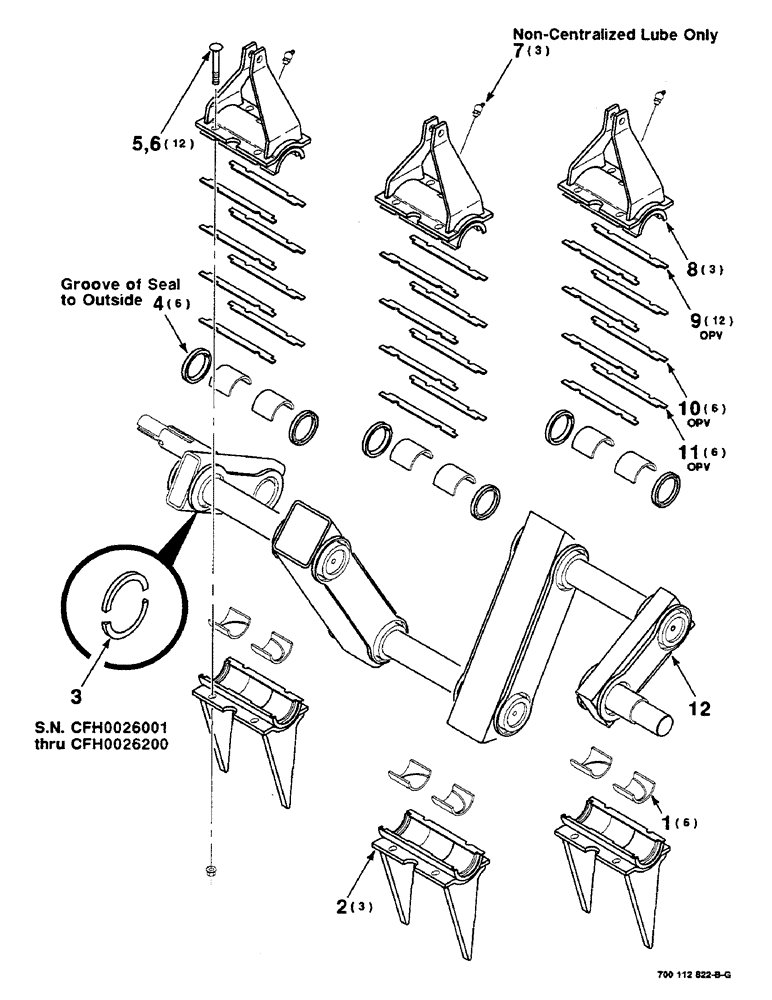

Запчасти Case IH 8580 (05-06) - CRANK ASSEMBLY, S.N. CFH0026001 THRU CFH0026055 (13) - FEEDER

1

700706131

BEARING SET,60.15mm ID x 70.12mm OD x 60mm L

BEARING - pair

6шт.

2

700112787

FINGER

WA

3шт.

3

700122668

KIT

WEAR RING KIT (Includes 12 halves)

1шт.

4

700706096

SEAL

6шт.

5

433-860

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 3/4", Gr 5

1/2-13 X 3-3/4 RHSNB

12шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

12шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8 NPTF X 45 DEGREE ZERK

3шт.

8

700112817

SUPPORT

ARM WA

3шт.

9

700706850

SHIM

- 0.51/.020

12шт.

10

700706133

SHIM

- 0.25/.010

6шт.

11

700706134

SHIM

- 0.13/.005

6шт.

12

700112775

CRANK

WA (Includes item 3) superseded by 70011282, 700113663, 700113661, 700113666, 52548 & 704407 (2)

1шт.
