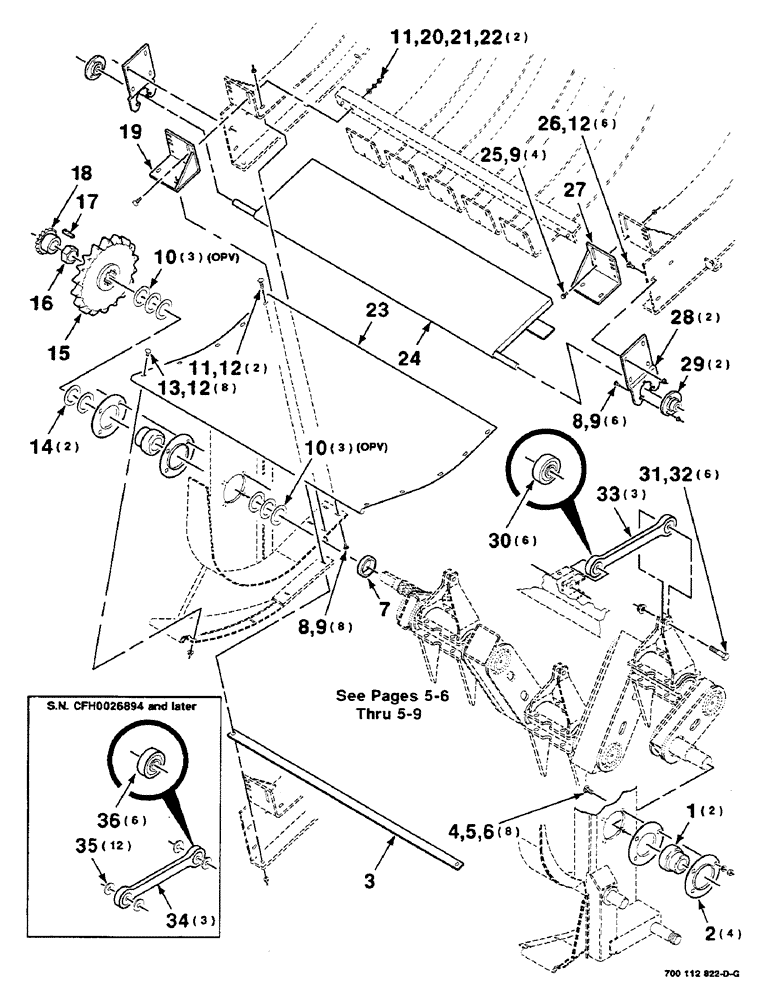

Запчасти Case IH 8580 (05-04) - PACKER MOUNTING AND FEEDER ASSEMBLY, LOWER, S.N. CFH0026056 AND LATER (13) - FEEDER

1

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING

2шт.

2

714360

FLANGED BEARING

FLANGE

4шт.

3

6525455

ANGLE

- support

1шт.

4

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

8шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

7

700113666

SPACER

1шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

14шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

18шт.

10

52548

SPECIAL WASHER

2 X 14 GAUGE NRMB

6шт.

11

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

12

231-5146

FLANGE NUT,3/8"-16

16шт.

13

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

14

740407

BRUSH, COMMUTATOR

2 X 10 GAUGE NRMB

2шт.

15

700113663

SPROCKET

WA 80C38 TOOTH

1шт.

16

700113661

NUT

1-5/8-12 NUT STAKE

1шт.

17

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 X 1-3/4 KEY - gib

1шт.

18

700706097

SPROCKET

60B15 TOOTH

1шт.

19

700112826

ANGLE

WA - right

1шт.

20

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

425-106

NUT,3/8"-16, Cl 5

2шт.

23

700112812

PANEL

- front

1шт.

24

6525471

PANEL

WA

1шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

4шт.

26

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

27

700112825

ANGLE

WA - left

1шт.

28

700112815

SUPPORT

2шт.

29

N5077

FLANGED BEARING

FLANGE

2шт.

30

617617R91

BALL BEARING,15.86mm ID x 49.21mm OD x 20.65mm W

BEARING - cylindrical (S.N. CFH0026001 thru CFH0026893)

6шт.

31

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

HCS 5/8-11 X 2-1/4 GR5 P

6шт.

32

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

6шт.

33

700121909

LINK CONROD

LINK ASSEMBLY (Includes item 30) superseded by 700124036 and 700124038 (4)

3шт.

34

700124036

LINK CONROD

LINK ASSEMBLY (Includes item 36) (S.N. CFH0026894 and later)

3шт.

35

700124038

BUSHING,16.27mm ID x 34.92mm OD x 10mm L

- bearing (S.N. CFH0026894 and later)

12шт.

36

616154R92

BEARING, ROLLER, CYL,16 mm

BEARING CYLINDRICAL (S.N. CFH0026894 and later)

6шт.
