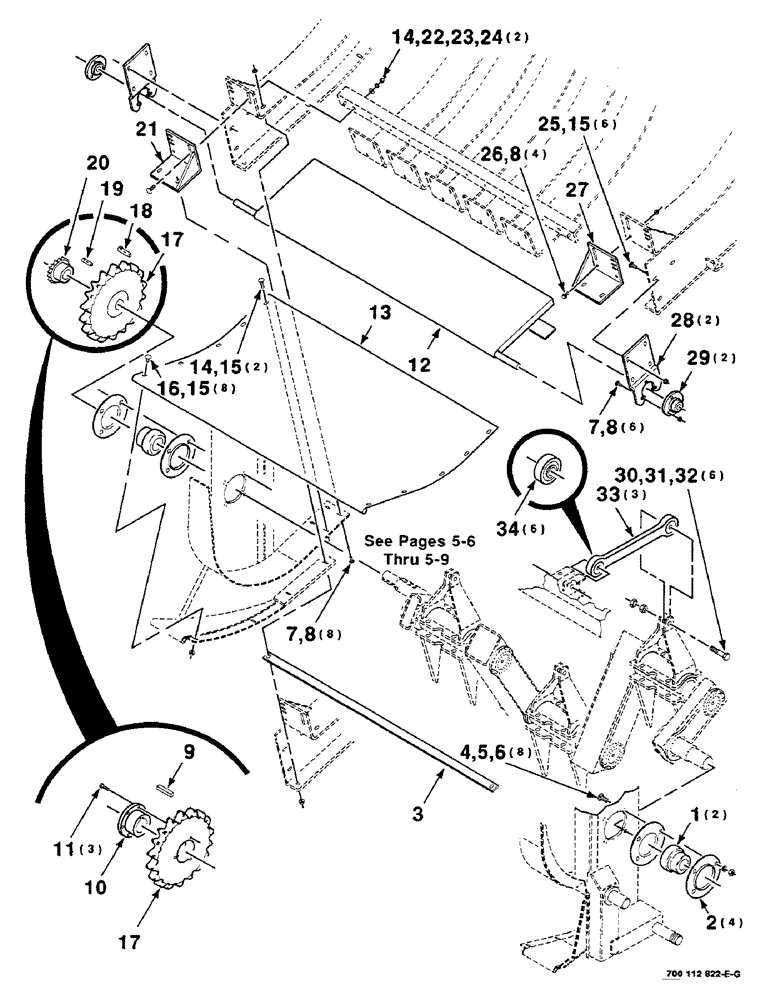

Запчасти Case IH 8580 (05-02) - PACKER MOUNTING AND FEEDER ASSEMBLY, LOWER, S.N. CFH0026001 THRU CFH0026055 (13) - FEEDER

1

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING

2шт.

2

714360

FLANGED BEARING

FLANGE

4шт.

3

6525455

ANGLE

- support

1шт.

4

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

8шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

7

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

14шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

18шт.

9

61879

KEY

1/2 X 1/2 X 2-1/2 KEY

1шт.

10

700709180

BUSHING

- tapered hub

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

12

6525471

PANEL

WA

1шт.

13

700112812

PANEL

- front

1шт.

14

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

15

231-5146

FLANGE NUT,3/8"-16

16шт.

16

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

17

700112824

DRIVEN SPROCKET

SPROCKET 80B38 TOOTH (Superseded by 700709179, 700709180 and 61879)

1шт.

700709179

SPROCKET

80B38 TOOTH

1шт.

18

61747

KEY

1/2 X 2-1/2 KEY - gib

1шт.

19

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 X 1-3/4 KEY - gib

1шт.

20

700706097

SPROCKET

60B15 TOOTH

1шт.

21

700112826

ANGLE

WA - right

1шт.

22

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

425-106

NUT,3/8"-16, Cl 5

2шт.

25

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

4шт.

27

700112825

ANGLE

WA - left

1шт.

28

700112815

SUPPORT

2шт.

29

N5077

FLANGED BEARING

FLANGE

2шт.

30

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

6шт.

31

425-1010

NUT,5/8"-11, G5

6шт.

32

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 HJN

6шт.

33

700121909

LINK CONROD

LINK ASSEMBLY (Includes item 34)

3шт.

34

617617R91

BALL BEARING,15.86mm ID x 49.21mm OD x 20.65mm W

BEARING - cylindrical

6шт.
