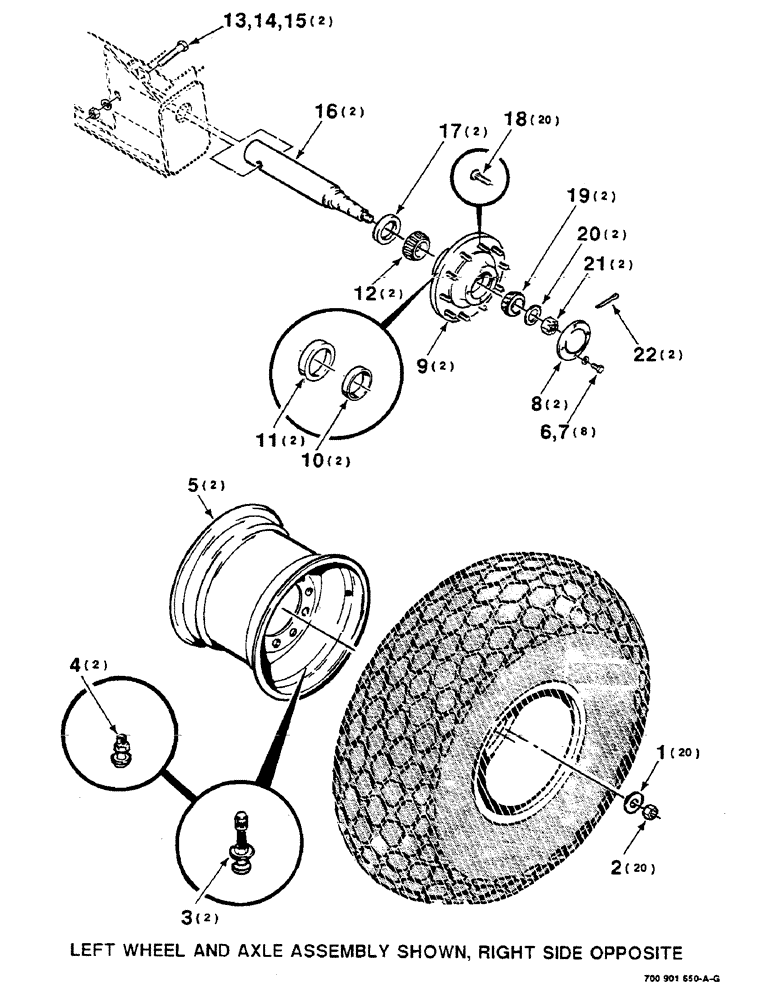

Запчасти Case IH 8580 (07-26) - WHEEL, HUB AND AXLE ASSEMBLY (12) - MAIN FRAME

1

826271

WASHER

20шт.

2

29-1112

NUT,3/4"-16, G8

3/4-16 H GR8 NP

20шт.

3

7027469

VALVE

STEM - valve

2шт.

4

417194C1

PLUG

- valve stem

2шт.

5

700708051

RIM

WHEEL - DWH 25 x 26

2шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

826578

HUB CAP

CAP - hub

2шт.

9

700112940

HUB

ASSEMBLY (Includes items 10, 11 and 18)

2шт.

10

1968292C1

BEARING

- cup

2шт.

11

13273D

BEARING, CUP,2.8755" ID x 5.001" OD x 1.452"

BEARING - cup

2шт.

12

13331DB

ROLLER BEARING,73.03mm ID x 36.17mm W

- cone

2шт.

13

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

425-1010

NUT,5/8"-11, G5

2шт.

16

700112942

SPINDLE

2шт.

17

7744519

SEAL

2шт.

18

826545

BOLT

3/4-16 X 2-1/2 RIB NECK BOLT

20шт.

19

M53320

BEARING ASSY

BEARING - cone

2шт.

20

195-2146

WASHER,1.56" ID x 3" OD x 0.13" Thk

1-1/2 NARROW PLAIN WASHER

2шт.

21

25-1324

SLOTTED NUT,1 1/2"-12, G5

1-1/2-12 SHN

2шт.

22

432-2048

COTTER PIN,5/16" x 3"

Pin, Split (Cotter), 5/16" x 3"

2шт.
