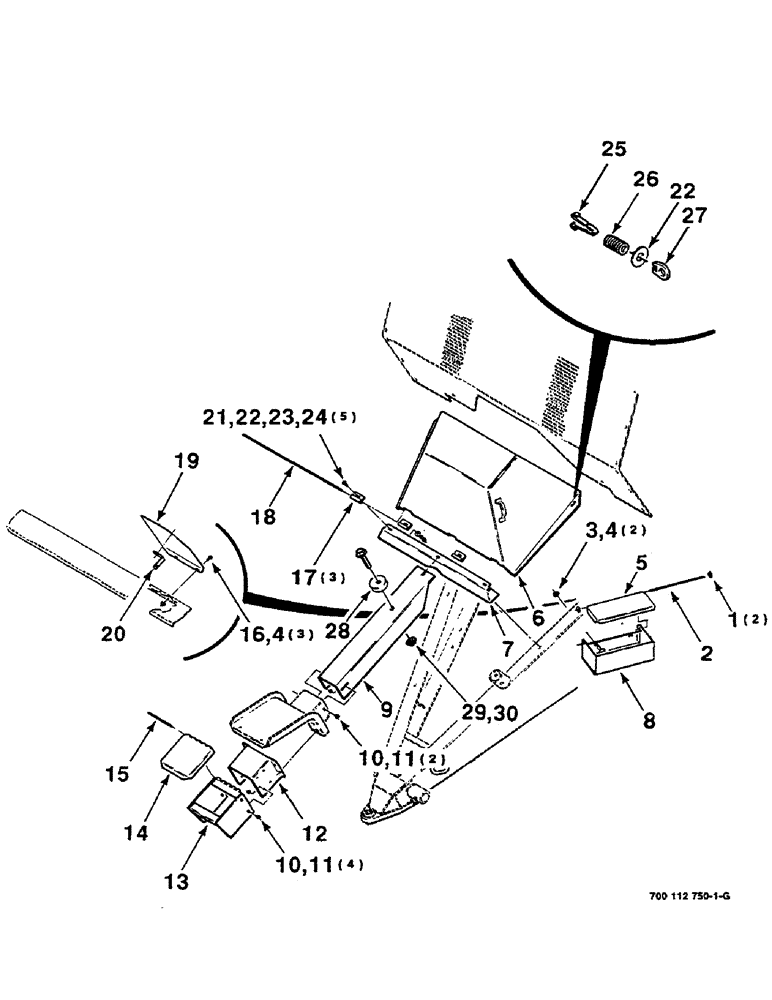

Запчасти Case IH 8580 (07-22) - SHIELDS ASSEMBLY, FRONT (12) - MAIN FRAME

1

700707858

SNAP RING

RING - retaining

2шт.

2

700108570

ROD

- hinge

1шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

2шт.

4

231-5146

FLANGE NUT,3/8"-16

5шт.

5

700018569

LID - tool, box

1шт.

6

700113986

SHIELD

WA

1шт.

7

700133740

CHANNEL

1шт.

8

700108566

TOOL BOX

BOX WA - tool

1шт.

9

700114006

SHIELD

- PTO

1шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

12

700114012

BEARING COVER

SHIELD - bearing

1шт.

13

700114007

SHIELD

WA - PTO

1шт.

14

700114013

COVER

- shield, U-Joint

1шт.

15

700116914

PIN

- hinge

1шт.

16

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

17

700113994

HINGE

SUPPORT - hinge

3шт.

18

065052

PIN

1шт.

19

700114023

SHIELD

1шт.

20

700114024

ANGLE

1шт.

21

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

22

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

24

425-105

NUT,5/16"-18, G5

5шт.

25

7894975

CLIP

- fastener

1шт.

26

7758212

SPRING

- compression

1шт.

27

7894967

HANDLE

- fastener

1шт.

28

700708648

BUMPER

1шт.

29

700707203

CAPTIVE WASHER SCREW

NO. 12-24 X 3/4 HWHMS

1шт.

30

1954816C1

LOCK NUT

NO. 12-24 HCLN - special

1шт.
