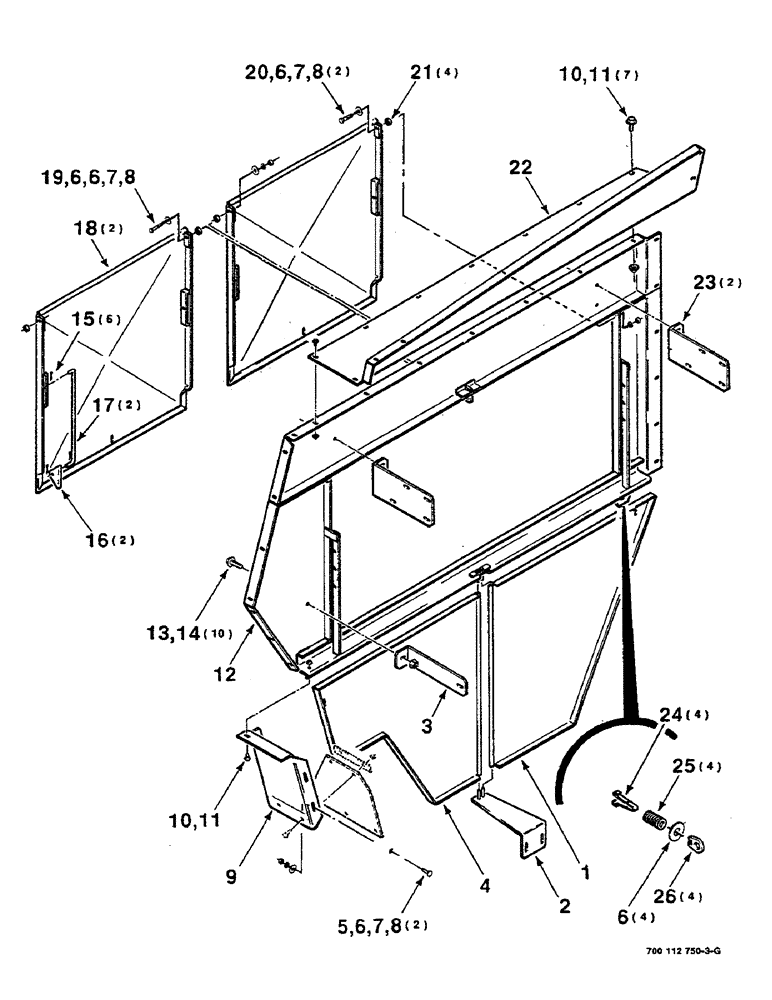

Запчасти Case IH 8580 (07-10) - SHIELDS ASSEMBLY, RIGHT (12) - MAIN FRAME

1

700113983

SHIELD

- right

1шт.

2

700113997

SUPPORT

WA

1шт.

3

700113990

ANGLE

- lower

1шт.

4

700113981

SHIELD

- lower, right

1шт.

5

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

10шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

8

425-105

NUT,5/16"-18, G5

5шт.

9

700113996

SHIELD

- right

1шт.

10

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

12

700113955

FRAME

SHIELD WA - right

1шт.

13

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

10шт.

14

231-5146

FLANGE NUT,3/8"-16

10шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

6шт.

16

700113992

GUIDE

2шт.

17

700113991

ROD

- door

2шт.

18

700113975

DOOR

WA

2шт.

19

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

21

6514772

SPACER

4шт.

22

700133640

SHIELD

- right

1шт.

23

700113989

ANGLE

2шт.

24

7894975

CLIP

- fastener

4шт.

25

7758212

SPRING

- compression

4шт.

26

7894967

HANDLE

- fastener

4шт.
