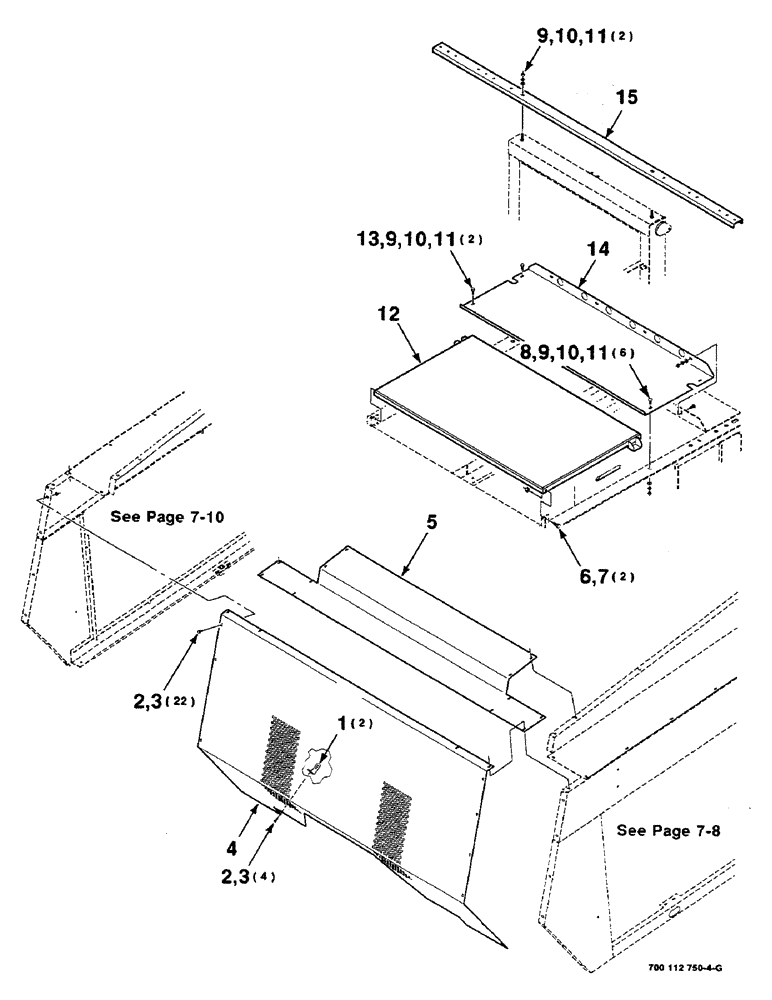

Запчасти Case IH 8580 (07-06) - SHIELDS ASSEMBLY, TOP AND FRONT (12) - MAIN FRAME

1

700114022

CHANNEL

ANGLE

2шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

26шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

26шт.

4

700113952

SHIELD

- front

1шт.

5

700113953

SHIELD

- top

1шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

7

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

10

492-11038

LOCK WASHER,3/8"

10шт.

11

425-106

NUT,3/8"-16, Cl 5

10шт.

12

700122886

LID

WA

1шт.

13

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

14

700113988

CHANNEL

- top

1шт.

15

700114020

CHANNEL

- light, support

1шт.
