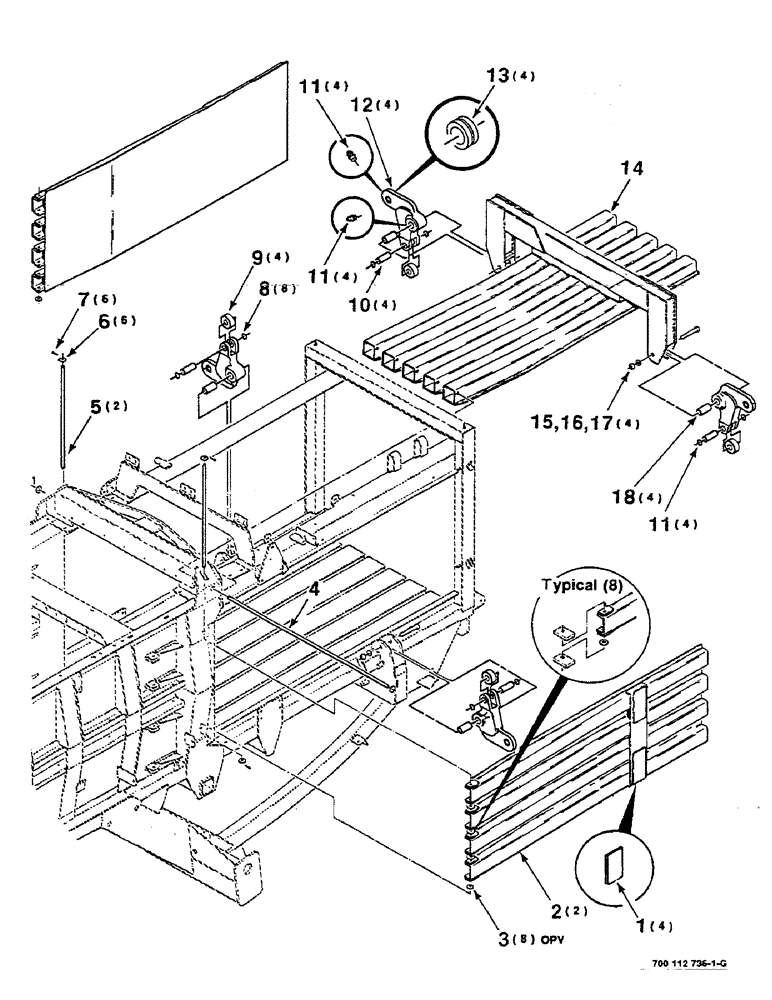

Запчасти Case IH 8580 (07-04) - BALE DENSITY DOORS AND ARMS ASSEMBLY (12) - MAIN FRAME

1

6529317

LARGE PLATE

PLATE - wear

4шт.

2

700113586

DOOR

WA (Includes item 1)

2шт.

3

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 X 14 GAUGE NRMB

8шт.

4

6529432

PIN

- top

1шт.

5

700113609

PIN

- side

2шт.

6

705566

WASHER

3/4 HARDENED PLAIN WASHER

6шт.

7

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

6шт.

8

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

9

700113614

ROLLER

4шт.

10

700113615

PIN

4шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

12шт.

12

700113610

ARM

ASSEMBLY (Includes items 11 & 13)

4шт.

13

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - spherical

4шт.

14

700113577

DOOR

WA - upper

1шт.

15

413-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

1-8 X 5-1/2 C

4шт.

16

192-171

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

17

425-1016

NUT,1"-8, G5

4шт.

18

6529408

BUSHING

4шт.
