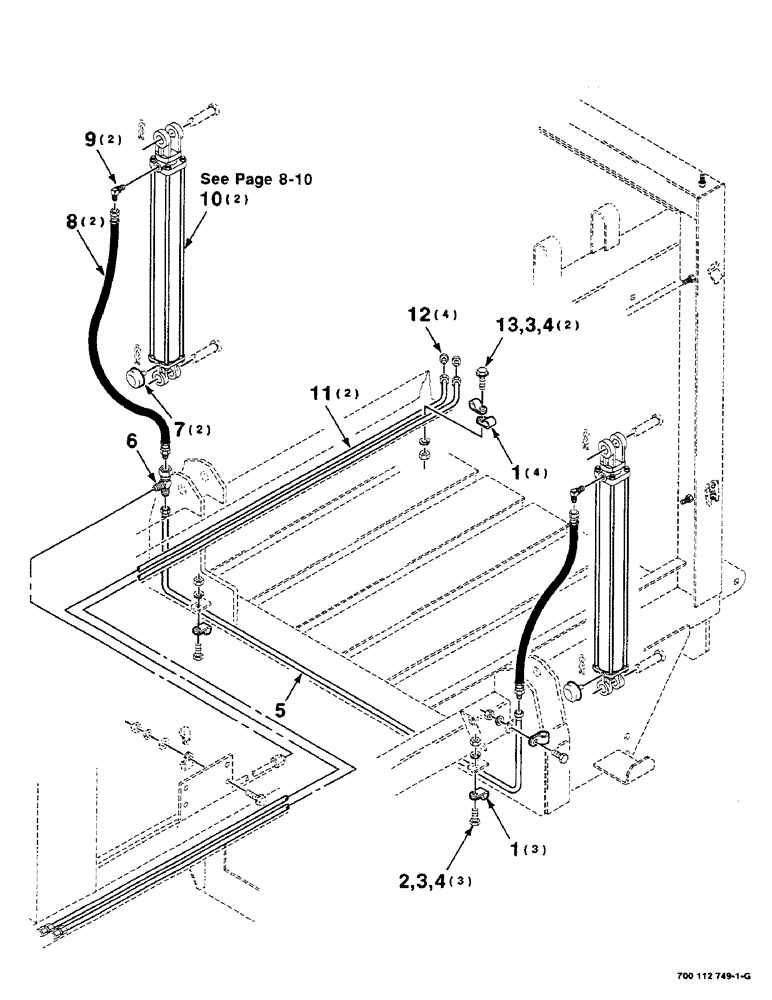

Запчасти Case IH 8580 (08-08) - HYDRAULIC BALE DENSITY ASSEMBLY (07) - HYDRAULICS

1

700708939

CLAMP

- heavy, duty

7шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

4

425-105

NUT,5/16"-18, G5

5шт.

5

700706392

FLEXIBLE HOSE

LINE - hydraulic

1шт.

6

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

7

8799280

FILTER

2шт.

8

7872856

HOSE

- hydraulic

2шт.

9

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

2шт.

10

700706338

HYDRAULIC CYLINDER,31.75mm Rod, 106.4mm Stroke

CYLINDER - hydraulic

2шт.

11

700708335

HYD TUBE,9.52 mm OD, 2375, 55 mm Length

LINE - hydraulic

2шт.

12

218-774

PLUG,9/16"-18, 37 Degree

4шт.

13

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.
