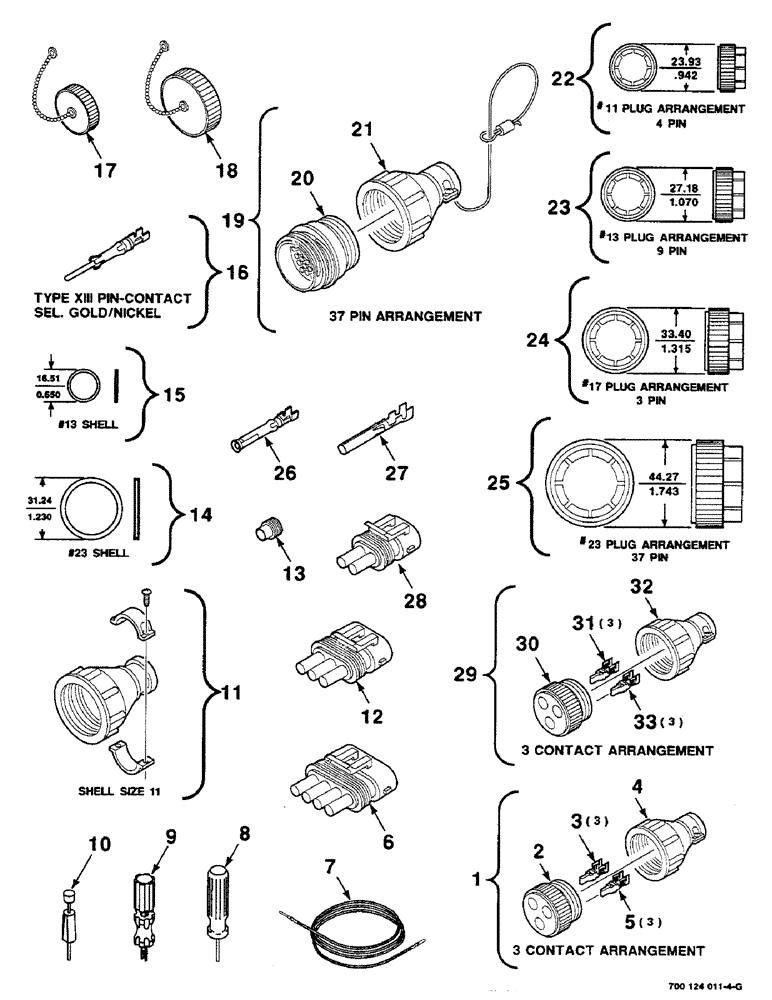

Запчасти Case IH 8580 (04-16) - ELECTRICAL HARNESS SERVICE PARTS, (CONT) (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
1714005
PACKAGE,SERVICE
KIT - harness repair (Female end) (Includes items 2, 3, 4 & 5)
1шт.
2
225165C1
ELEC CONNECTOR
RECEPTACLE - 3 pin, male
1шт.
3
700710620
TERMINAL
CONTACT - female (16-12 Gauge)
1шт.
4
225153C1
CONTACT HOUSING
CLAMP - cable, shell size 17
1шт.
5
700709706
TERMINAL
CONTACT - female (10-8 Gauge)
1шт.
6
700708963
WIRE CONNECTOR
CONNECTOR - female, 4 wire
1шт.
7
700708333
WIRE
- test
1шт.
8
700707012
TERMINAL CONNECTOR
TOOL - connector repair
1шт.
9
700707014
TERMINAL CONNECTOR
TOOL - connector repair
1шт.
10
131503C1
TOOL
- connector repair
1шт.
11
700709233
CLAMP
- cable (Shell size 11)
1шт.
12
245484C1
ELEC CONNECTOR,3 Pin
CONNECTOR - female, 3 wire
1шт.
13
700706400
PLUG
SEAL
1шт.
14
700711660
SEAL
1шт.
15
700712896
SEAL
1шт.
16
700708757
ELEC. TERMINAL PIN,18 - 16 SAE
PIN
1шт.
17
700707016
CAP
- sealing
1шт.
18
700712983
CAP
- sealing
1шт.
19
700713300
ELEC CONNECTOR
PLUG ASSEMBLY (Includes items 20 & 21)
1шт.
20
700719293
WIRE CONNECTOR
RECEPTACLE - standard, 37 pin, male
1шт.
21
245491C1
ELEC CONNECTOR
CLAMP - cable, shell size 23
1шт.
22
60-6126T2
CONNECTION
RING - coupling
1шт.
23
60-6127T2
CONNECTION
RING - coupling
1шт.
24
1301191C1
CONNECTION
RING - coupling
1шт.
25
60-6129T2
CONNECTION
RING - coupling
1шт.
26
700708758
TERMINAL
SOCKET - type III, Sel. gold/nickel
1шт.
27
700708760
ELEC. TERMINAL PIN,18 - 20 SAE
- sleeve
1шт.
28
245482C1
ELEC CONNECTOR,2 Pin
CONNECTOR - female 2 wire
1шт.
29
1713999
PACKAGE,SERVICE
KIT - harness repair, 3 contact, female (Includes items 30, 31, 32 & 33)
1шт.
30
700710659
CONTACT HOUSING
RECEPTACLE - plug, 3 contact, male
1шт.
31
225167C1
TERMINAL CONNECTOR,Male, 5 - 6 mm2
CONTACT - male, silver, (10 Gauge)
1шт.
32
225153C1
CONTACT HOUSING
CLAMP - cable, shell size 17
1шт.
33
225166C1
ELEC. TERMINAL PIN,Male, Tin, 1.0 - 2.0mm
CONTACT - male, silver (12-16 Gauge)
1шт.
Выбрано товаров: 33
