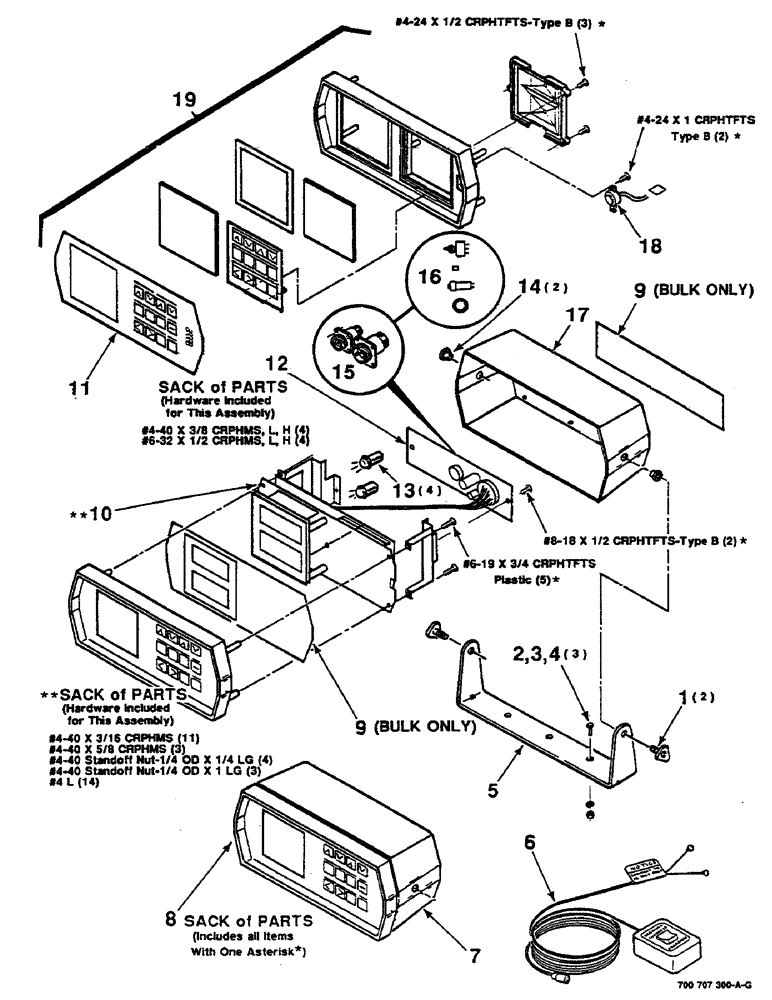

Запчасти Case IH 8580 (04-08) - CONSOLE CONTROL BOX, S.N. CFH0026001 THRU CFH0026652 (06) - ELECTRICAL

1

700707295

KNOB

- clamp type

2шт.

2

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

3шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

4

425-104

NUT,1/4"-20, Cl 5

3шт.

5

700114077

SUPPORT

- control box

1шт.

6

700707682

CABLE

- manual control

1шт.

7

700707300

CONTROL UNIT

CONTROL BOX COMPLETE

1шт.

700710612

CONTROL UNIT

CONTROL BOX COMPLETE - remanufactured (Return core 700710602)

1шт.

8

700707378

KIT

SACK OF PARTS

1шт.

9

700707383

GASKET

- sponge cord (10 Foot bulk)

2шт.

10

700707379

KIT

SACK OF PARTS

1шт.

11

700113917

TRIM PANEL

OVERLAY - control box, front

1шт.

12

700707377

KIT

SACK OF PARTS

1шт.

13

700707457

BULB

LAMP AND HOLDER

4шт.

14

700707294

PUSH-ON NUT

- well, rubber

2шт.

15

700707381

REPAIR KIT

KIT - repair, receptacle

1шт.

16

700707382

REPAIR KIT

KIT - repair

1шт.

17

700707296

PANEL

COVER

1шт.

18

700707376

HORN

INDICATOR - audio

1шт.

19

700113927

CONTROL PANEL

PANEL ASSEMBLY - control

1шт.
