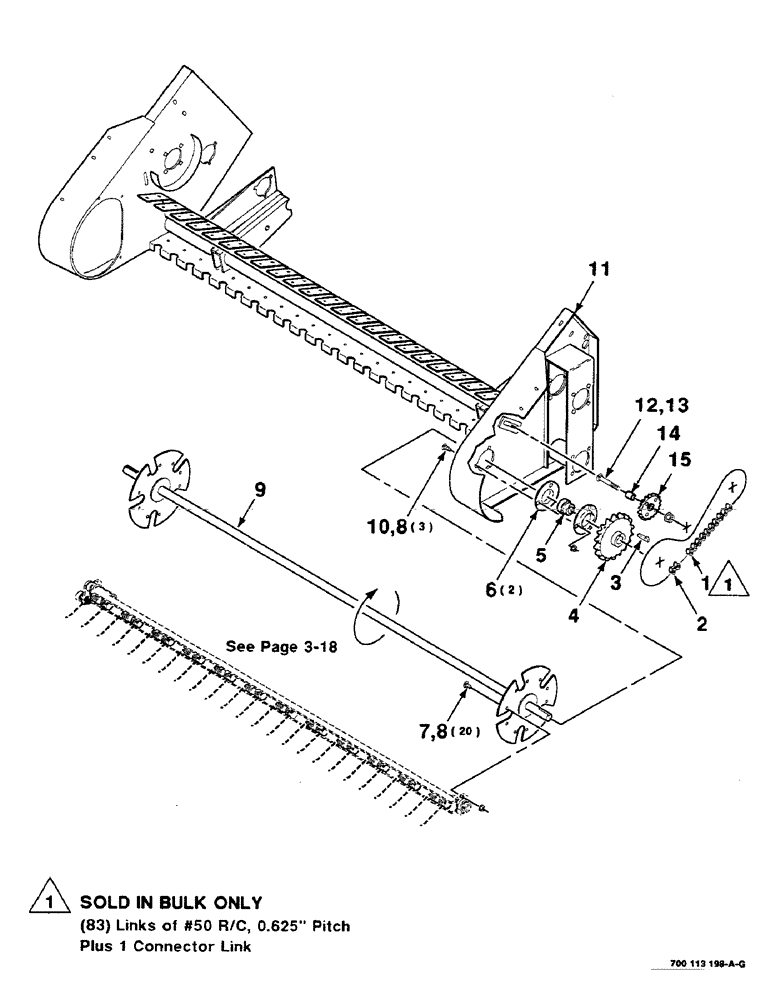

Запчасти Case IH 8580 (03-16) - PICKUP AND PICKUP DRIVE ASSEMBLY, LEFT Pickup

1

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller #50 (10 Foot bulk)

1шт.

2

47530

LINK, CONNECTING

LINK - connector, #50 R/C

1шт.

3

61424

KEY

1/4 X 1-1/4 GIB KEY

1шт.

4

6141311

SPROCKET ASSY.

SPROCKET 50B36 TOOTH

1шт.

5

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

1шт.

6

617863R1

FLANGED BEARING

2шт.

7

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

20шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

23шт.

9

700113229

REEL

WA

1шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

11

700113199

FRAME

PICKUP WA

1шт.

12

111-505

CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/2", G5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 3 1/2", G5

1шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

14

6530638

BUSHING

1шт.

15

565442R91

SPROCKET

- idler 17 tooth

1шт.
