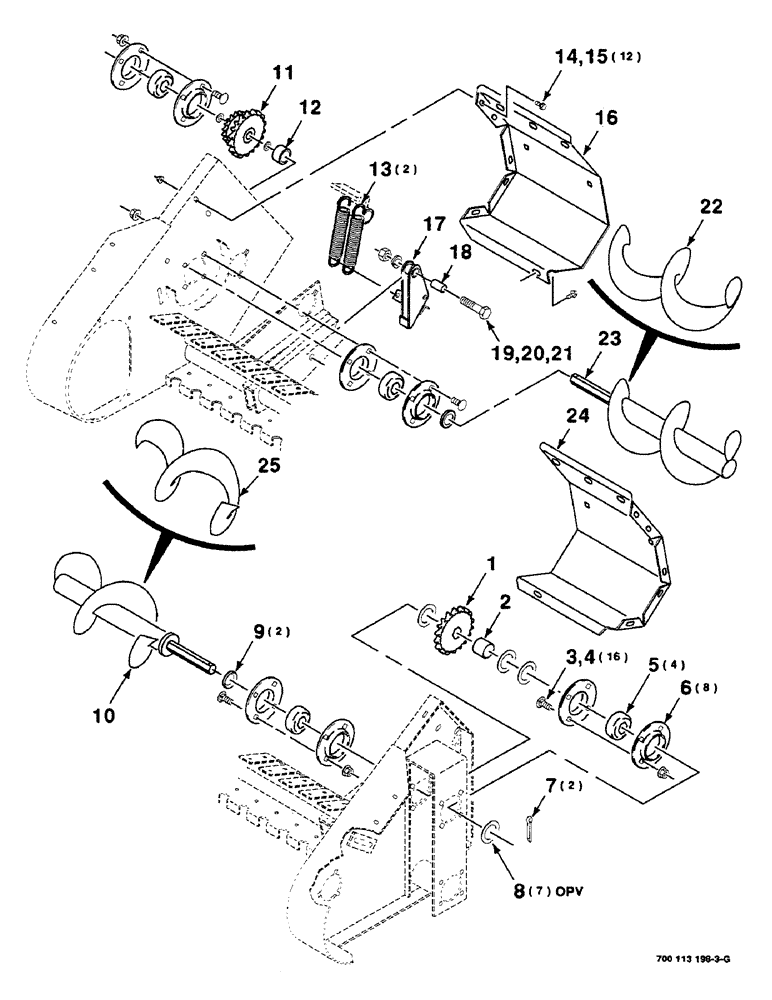

Запчасти Case IH 8580 (03-10) - PICKUP AUGER AND PAN ASSEMBLY Pickup

1

700113643

SPROCKET

50B20 TOOTH

1шт.

2

700113304

SPACER

1шт.

3

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

16шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

16шт.

5

700703101

SPHERICAL BEARING,31.78 mm ID x 80 mm OD x 36.512 mm

BEARING

4шт.

6

663562R1

FLANGE

8шт.

7

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

8

NLS

NO LONGER SERVICED

1-1/2 X 14 GAUGE NRMB

7шт.

9

700113638

SPACER

2шт.

10

700113299

AUGER

- left

1шт.

11

700113636

SPROCKET

WA 20 - 29 tooth

1шт.

12

700113305

SPACER

1шт.

13

858308

SPRING

2шт.

14

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

12шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

12шт.

16

700113270

PAN

- auger, right

1шт.

17

700113276

PIVOT

WA

1шт.

18

700113281

SPACER

1шт.

19

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.75 X 3 UNC GR5 YZD

1шт.

20

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

21

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

22

700113247

AUGER FLIGHT

FLIGHTING - left, left hand spiral

1шт.

23

700113300

AUGER

- right

1шт.

24

700113269

PAN

- auger, left

1шт.

25

700113248

AUGER FLIGHT

FLIGHTING - right, right hand spiral

1шт.
