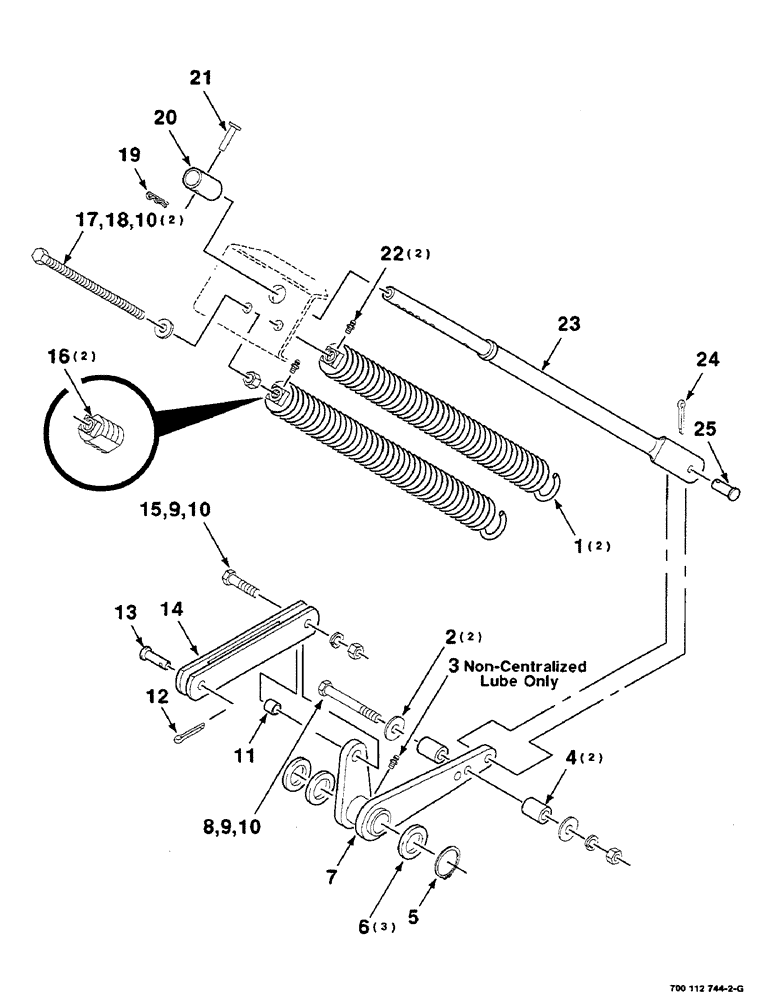

Запчасти Case IH 8580 (03-08) - PICKUP FLOTATION ASSEMBLY Pickup

1

6522700

SPRING

ASSEMBLY (Includes item 16)

2шт.

2

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK

1шт.

4

6229462

SPACER

2шт.

5

100-11150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

6

740522

WASHER

BUSHING

3шт.

7

700113283

CRANK

WA

1шт.

8

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

159723

SPACER

1шт.

12

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

13

863498

CLEVIS PIN

5/8 X 3-1/2 CLEVIS PIN

1шт.

14

700113287

LINK

WA

1шт.

15

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

16

6845879

PLUG

- spring

2шт.

17

702282

BOLT,Hex, 5/8" - 11 x 10", Gr 5

5/8-11 X 10 FTB

2шт.

18

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

19

T54573

PIN

.120 WIRE HAIR PIN COTTER

1шт.

20

700113296

COLLAR

1шт.

21

863381

CLIP,9.53mm OD x 50.8mm L

3/8 X 2 CLEVIS PIN

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

23

700113292

LINK

WA

1шт.

24

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

25

22754R1

CLEVIS PIN,5/8" x 1.844"

5/8 X 1-3/4 CLEVIS PIN

1шт.
