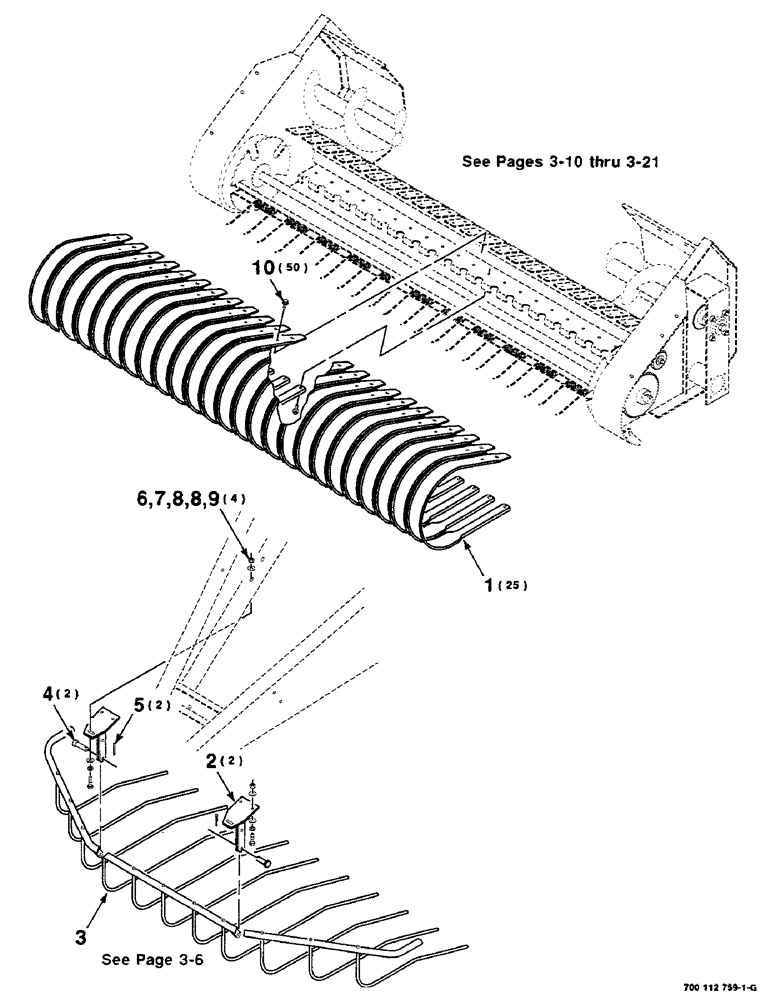

Запчасти Case IH 8580 (03-04) - WINDGUARD AND PICKUP WRAPPERS ASSEMBLY Pickup

1

700113244

GUARD

WRAPPER

25шт.

2

700113625

HANGER

WA

2шт.

3

700113617

WINDGUARD

WA

1шт.

4

427-8136

CLEVIS PIN,1/2" x 1.360"

1/2 X 1-1/4 CLEVIS PIN

2шт.

5

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

50шт.
