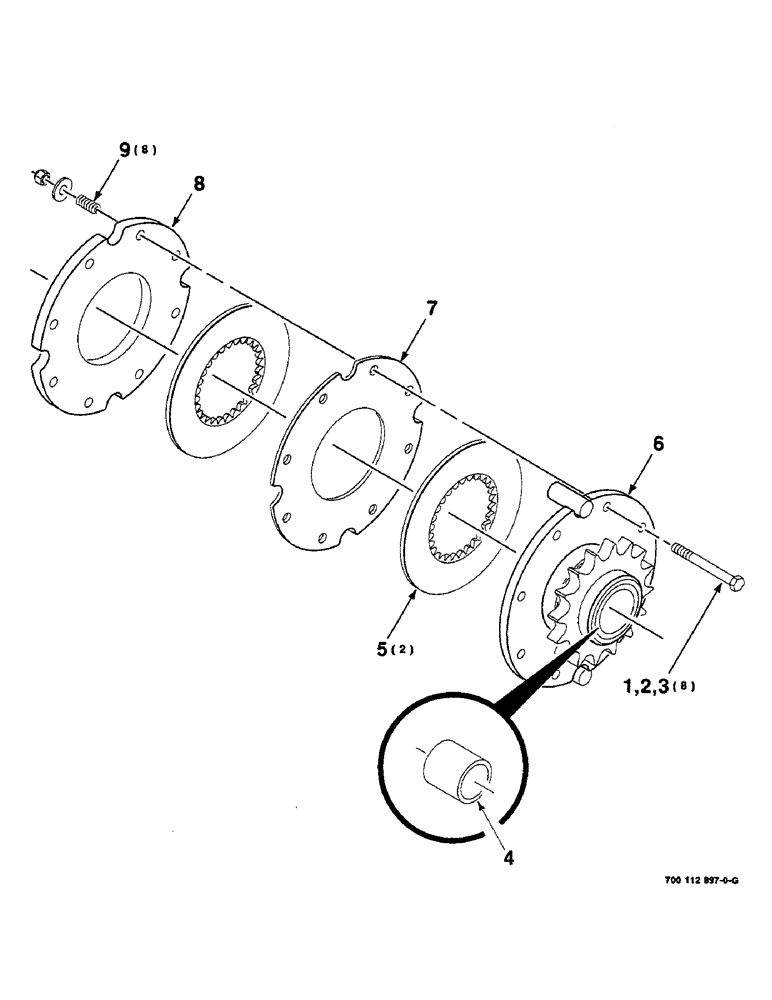

Запчасти Case IH 8580 (02-34) - SLIP CLUTCH ASSEMBLY Driveline

1

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 C

8шт.

2

495-21044

WASHER,3/8"

8шт.

3

231-1406

LOCK NUT,3/8"-16, GB

3/8-16 LHSN

8шт.

4

6565030

BUSHING,50.98mm ID x 62.63mm OD x 63.69mm L

1шт.

5

700108820

DISC

ASSEMBLY - friction

2шт.

6

700112899

SPROCKET

WA 80 - 16 tooth (Includes item 4)

1шт.

7

700112903

CLUTCH PLATE,106mm ID x 220mm OD x 5mm Thk

PLATE - clutch

1шт.

8

6522866

CLUTCH PLATE

PLATE - clutch

1шт.

9

58107

SPRING

- compression

8шт.
