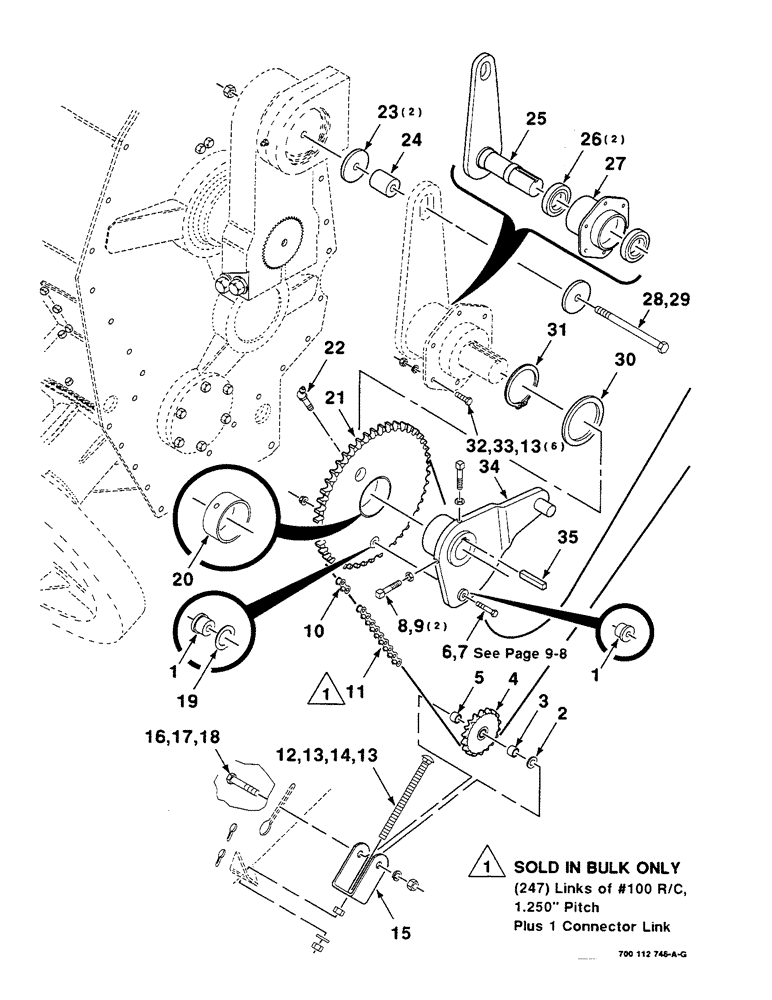

Запчасти Case IH 8580 (02-30) - DRIVE ASSEMBLY, LEFT, AUXILIARY Driveline
№
Артикул
Название
Примечание
Количество
1
6526081
BUSHING
SLEEVE - shear bolt
2шт.
2
705566
WASHER
3/4 HARDENED PLAIN WASHER
1шт.
3
6823512
SPACER
1шт.
4
700706110
SPROCKET
- idler, 12 tooth
1шт.
5
6179246
BUSHING
1шт.
6
426-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8
1шт.
7
231-5348
FLANGE NUT,Flg, 1/2"-13
1/2-13 HFTLN GR/G
1шт.
8
85-15040
SET SCREW,1/2" - 13 x 2-1/2"
1/2 X 2-1/2 CPSQHSS
2шт.
9
425-148
JAM NUT,Jam, 1/2"-13, G5
2шт.
10
241-44110
LINK,Chain, 31.75mm Pitch
CONNECTOR LINK - #100 R/C
1шт.
11
1795D
CHAIN (AG)
CHAIN - roller, #100 (10 Foot bulk)
1шт.
12
7770878
BOLT,Sq Nk, 1/2" - 13 x 7", Gr 5, Full Thd
1/2-13 X 7 FTRHSNB
1шт.
13
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
8шт.
14
705541
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
1/2 HARDENED PLAIN WASHER
1шт.
15
6526164
CLEVIS
1шт.
16
413-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
3/4-10 X 4 C
1шт.
17
492-11075
LOCK WASHER,3/4"
3/4"
1шт.
18
425-1012
NUT,3/4"-10, G5
3/4-10 H
1шт.
19
495-81205
WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk
1-1/4 X 14 GAUGE NRMB
1шт.
20
700112933
BRONZE BUSHING
BUSHING - bronze
1шт.
21
700112915
SPROCKET,40T
ASSEMBLY - 100B40 tooth (Includes items 1, 19 and 20)
1шт.
22
219-56
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
1/8-27 X 90 DEGREE ZERK - extended
1шт.
23
6579106
LARGE PLATE
CAP - plate
2шт.
24
700112930
BUSHING
1шт.
25
700112906
ARM
WA
1шт.
26
7713894
BEARING, ROLLER, CYL,75 mm ID x 130 mm OD x 25 mm
BEARING - cylindrical
2шт.
27
6526016
BRACKET
WA - bearing
1шт.
28
413-12160
BOLT,Hex, 3/4" - 10 x 10", Gr 5
3/4-10 X 10 B
1шт.
29
232-41112
NUT,3/4"-10, GC
NUT, LOCK, 3/4"-10, GC
1шт.
30
700112931
WASHER
- special
1шт.
31
700706111
CIRCLIP
RING - retaining, external
1шт.
32
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
6шт.
33
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
6шт.
34
700112909
HUB
ASSEMBLY (Includes item 1)
1шт.
35
700112932
KEY
- straight
1шт.
Выбрано товаров: 35
